Description

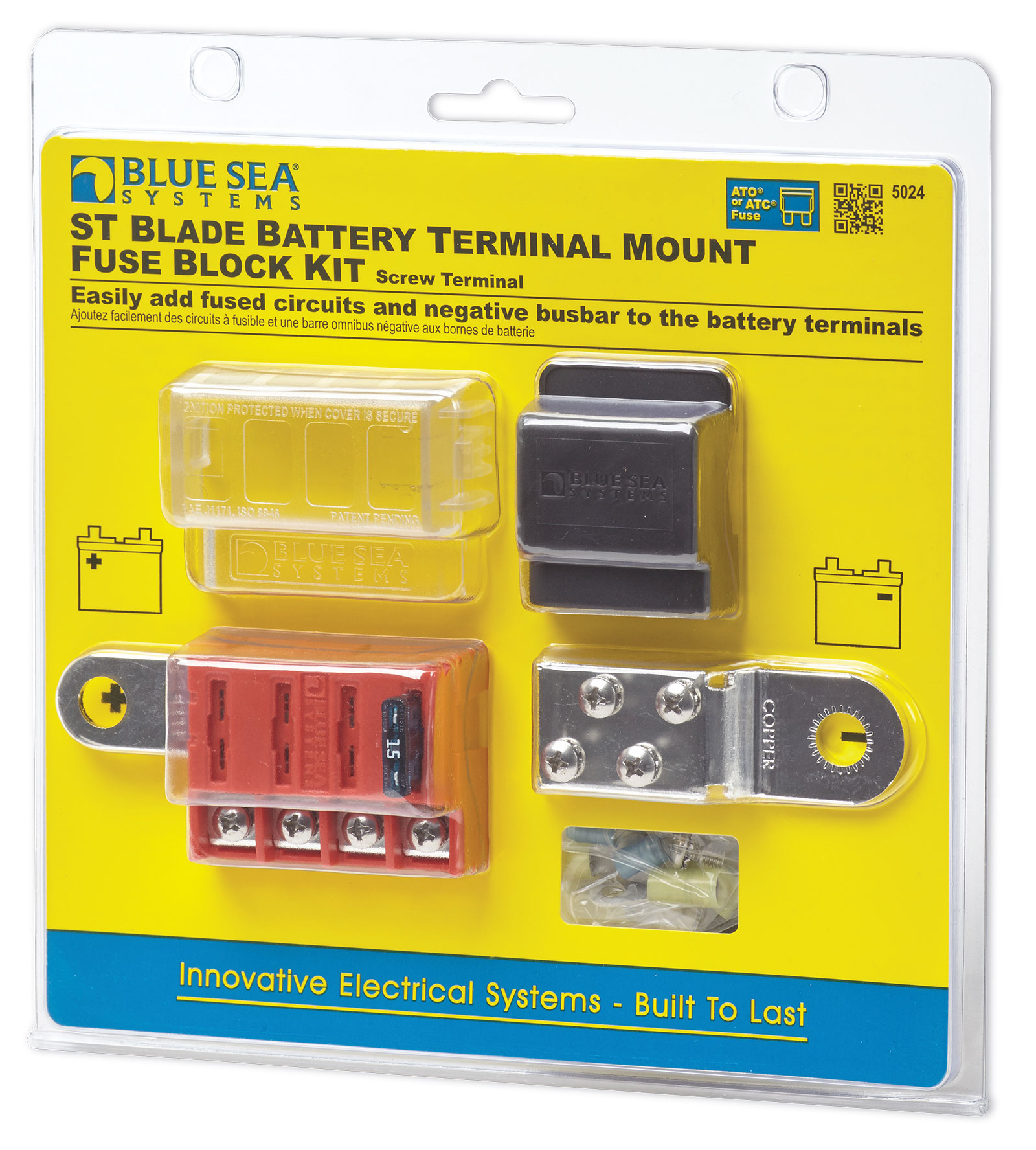

BLUE SEA SYSTEMS ST Blade Battery Terminal Mount Fuse Block Kit – 5024.
Easily add 4 fused circuits to the terminal of a battery
Provides power to new accessories in your boat or vehicle.

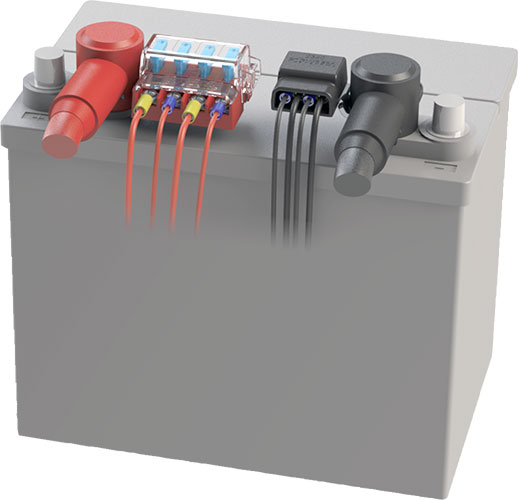

- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Nylon insulated ring terminals included for each screw terminal
- Accepts small format circuit labels
- Insulating cover meets ABYC/USCG insulation requirements
- Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Includes a 4-circuit negative busbar
- Includes write on labels
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications | |
---|---|
Circuits | 4 |
Maximum Amperage ![]() |
100A per block 30A per circuit |
Maximum Voltage | 32V DC |
Bus Material | Tin-Plater Copper C11000 |
Mounting Hole | 3/8″ (M10) Stud |
Screw Terminal Torque | 18 in-lb (2.03 Nm) |
Screw Terminal Type | #8-32 |
Weight | 0.50lb (0.23 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
