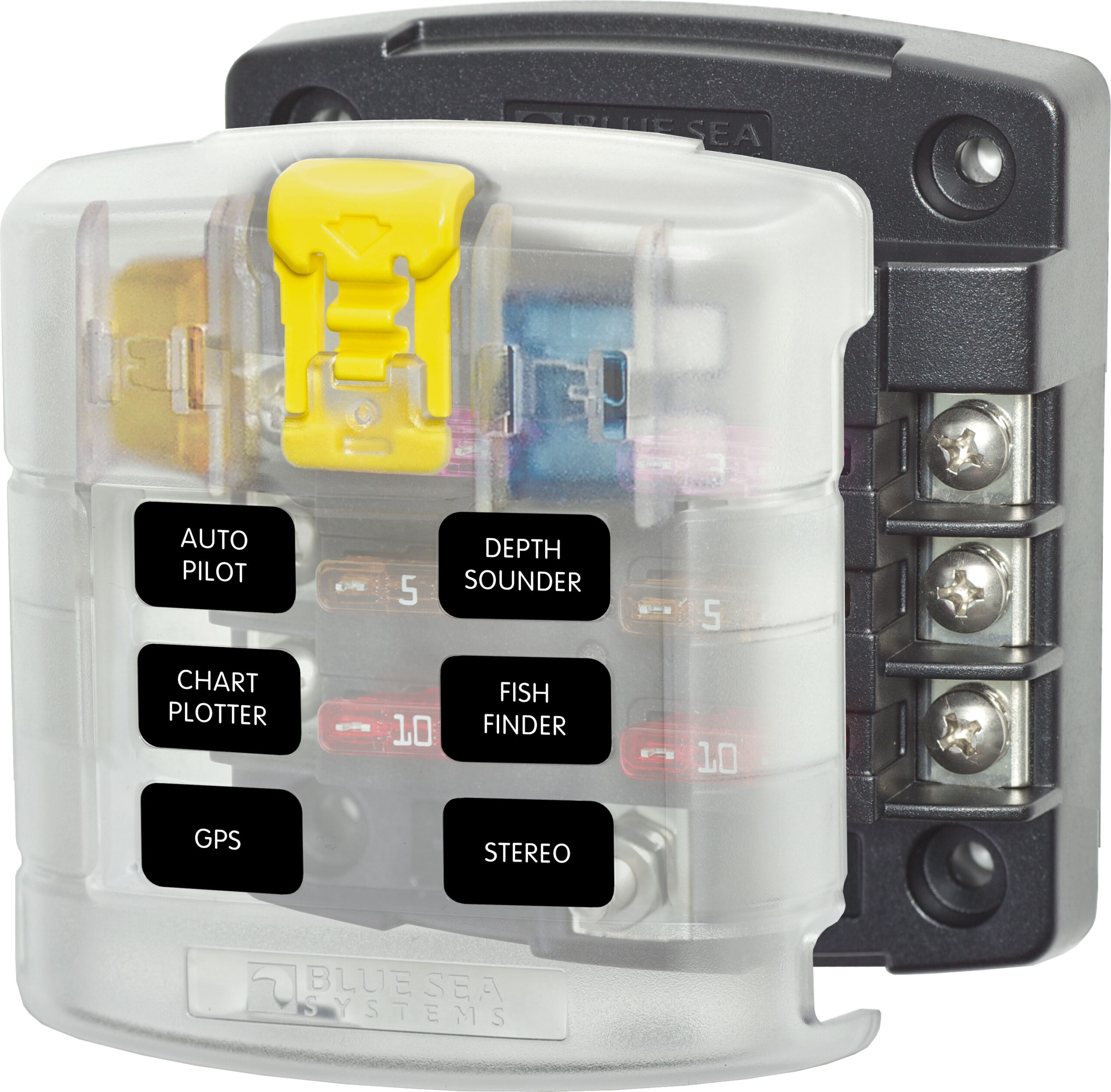

Blue Sea Systems ST-Blade Fuse Block – 6 Circuits with Cover – 5028

Description

Blue Sea Systems ST-Blade Fuse Block – 6 Circuits with Cover – 5028

Consolidates branch circuits and in-line fuses.

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Models available with or without a cover
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems’ Small Format Labels for circuit identification
• Organizes fuse-protected branch circuits in a clean, serviceable layout

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

What’s in the Box

• Fuse blocks with covers include 20 write-on circuit labels

Specifications

• Circuits: 6
• Maximum Amperage: 100A per block 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb (2.71 N·m)
• Screw Terminal Torque: 18 in-lb (2.03 N·m)
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Weight: 0.42 lb (0.19 kg)
• Overall Dimensions: 3.315 in W × 3.652 in H × 1.518 in D (84.20 mm × 92.76 mm × 38.57 mm)
• Mounting Centers: 2.500 in W × 2.639 in H (63.50 mm × 67.03 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5028
