Blue Sea Systems Fuse Block MRBF 3Circ Indepen. – 5194

Description

Blue Sea Systems Fuse Block MRBF 3Circ Indepen. – 5194

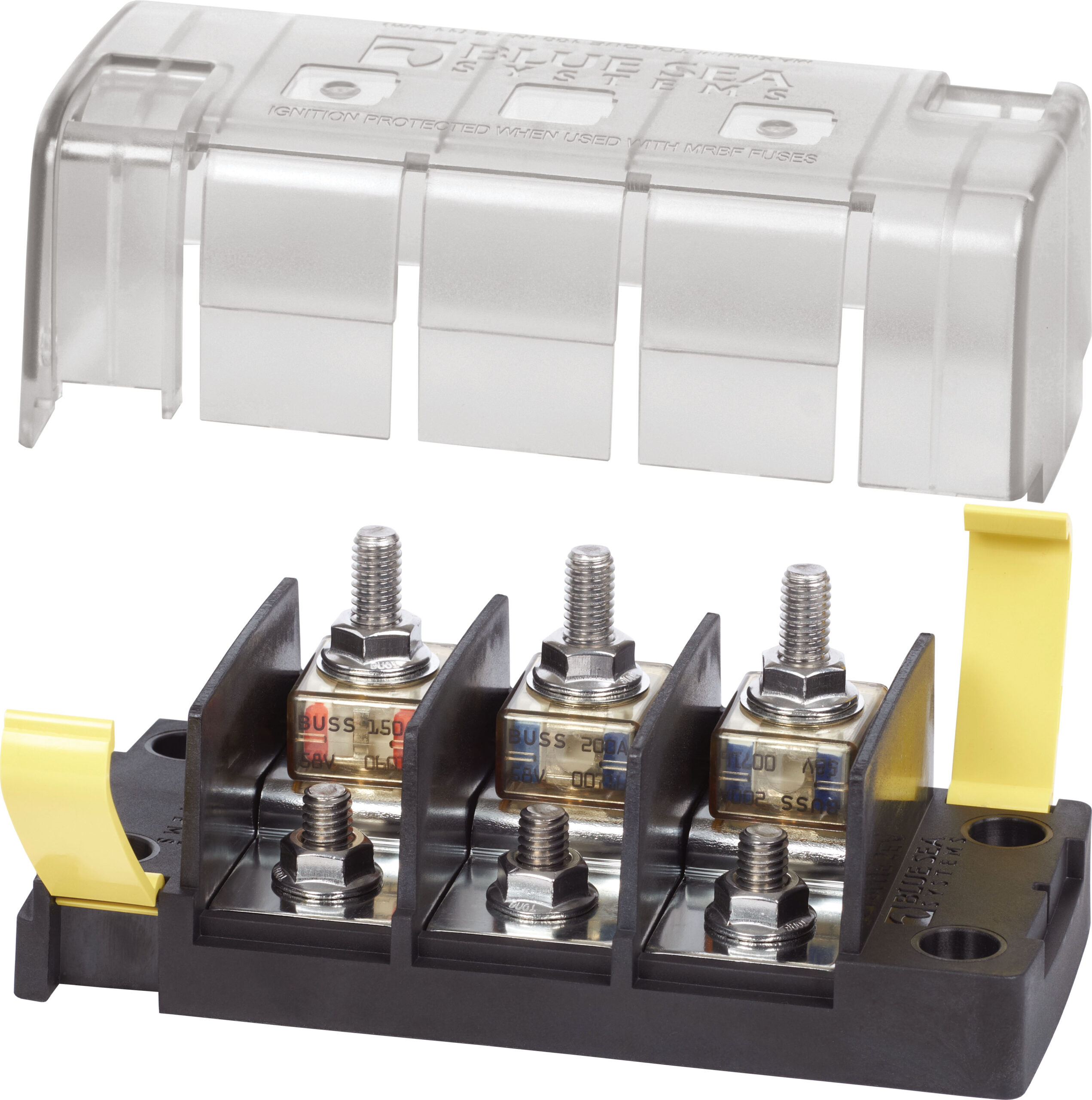

The Blue Sea Systems Fuse Block MRBF 3Circ Indepen. is designed for marine and mobile electrical circuit protection.

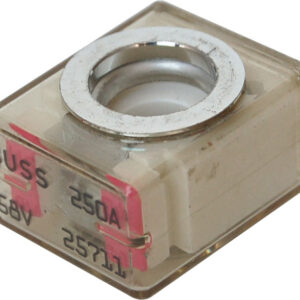

• Accommodates three MRBF fuses for consolidated high amperage circuit protection
• Ideal for 3 output battery chargers
• Clip-on insulating cover satisfies ABYC/USCG insulation requirements
• Versatile wiring options allow all wires to come out a single side
• Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Ignition Protected: Yes
• Maximum Amperage: 240A per circuit
• Maximum Voltage: 58V DC
• Mounting: Surface Mount M5 (#10)
• Maximum Torque: 100 in-lb (11.3 N·m)
• Terminal Stud Size: M8 (5/16″-18)
• Weight: 1.20 lb (0.54 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 5194
