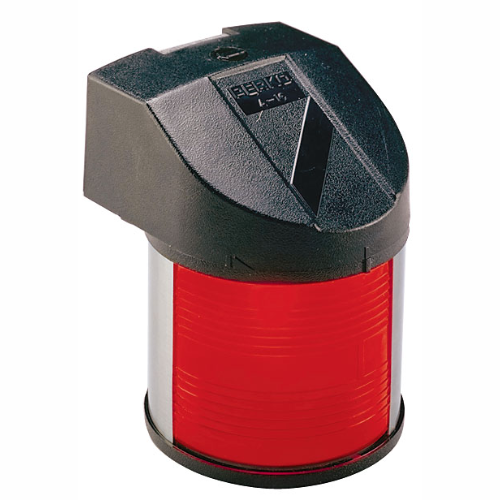

PERKO Black 12V Red Port Side Top-Mount Navigation Light – 200-PT-DP1

Description

PERKO Black 12V Red Port Side Top-Mount Navigation Light – 200-PT-DP1

PERKO part 0200PT0DP1 is a serviceable incandescent 0200 Series port side fixture for vessels under 20 m (65.6 ft.). This DP1 model is specifically the 12V version and includes the correct 25W PERKO bulb. Its replaceable lens, socket and bulb support maintenance of existing 0200 Series installations.

Key Features

• Red lens for port side service
• Certified visibility: 2 nautical miles
• Visibility arc: 112.5°
• Top mount with stainless-steel bracket construction
• 12V 25W bulb included

Installation and Application

• Mount accurately vertical on the port side, in the same thwartship plane and at the same height as the starboard light.
• Install using #8 mounting-plate screws
• Use the supplied silicone sleeves over conductors to protect against internal lamp heat
• Use a minimum conductor size of 1.5 mm² (16 AWG) and keep total 12V voltage drop below 0.5V
• Install the staggered-pin bulb at the correct voltage and wattage; rotate the lens clockwise firmly to its stop
• Clean only with fresh water and mild detergent

Replacement Parts and Compatibility

• 12V replacement bulb: PERKO 037512V25W
• 24V version uses 037524V25W and a DP2 fixture suffix
• For 32V applications, Catalog 320 directs customers to contact PERKO
• Replacement lens assembly: PERKO 0200PT0LNS
• Replacement socket: PERKO 0093 for a single/lower socket; PERKO 0995 is used only as the upper socket in double-stack lights

Detailed Selection and Service Information

• Red port side configuration with 112.5° visibility arc and 2 nautical miles published visibility; intended for Power-driven vessels under 20 m.
• Top mount black-polymer fixture; published dimensions are 122.2 mm high x 84.1 mm outside diameter with 84.1 mm projection (4-13/16 x 3-5/16 x 3-5/16 in.).
• DP1 is the 12V package and includes PERKO 037512V25W; published draw is 25W and 2.08A.
• Replacement lens assembly is 0200PT0LNS; single/lower bulb socket is Figure 0093. Mounting details: #10 fasteners; stainless-steel mounting bracket included.
• Catalog 320 lists 24V black versions by changing DP1 to DP2 and using the corresponding 037524V25W bulb; for 32V applications PERKO directs customers to contact the factory.

What’s in the Box

• 1 complete 0200 Series navigation-light fixture
• 1 installed 12V 25W bulb

Specifications

• PERKO Manufacturer Part Number: 0200PT0DP1
• False Creek Fuels SKU: PER-200-PT-DP1
• Series: 0200
• Voltage: 12V DC (DP1 version)
• Light Function: Port side
• Lens Colour: Red
• Mounting Style: Top mount with stainless-steel bracket
• Housing: Black polymer with stainless-steel bracket
• Certified Visibility: 2 nautical miles
• Visibility Arc: 112.5°
• Power: 25W
• Current Draw: 2.08A at 12V
• Overall Height: 122.2 mm (4-13/16 in.) overall height
• Lens Height: 69.9 mm (2-3/4 in.)
• Base Outside Diameter: 84.1 mm (3-5/16 in.)
• Projection: 84.1 mm (3-5/16 in.)
• Mounting Fasteners: #8 mounting-plate screws
• Included / Replacement Bulb: 037512V25W
• Replacement Lens Assembly: 0200PT0LNS
• Application: Power-driven vessels under 20 m
