Description

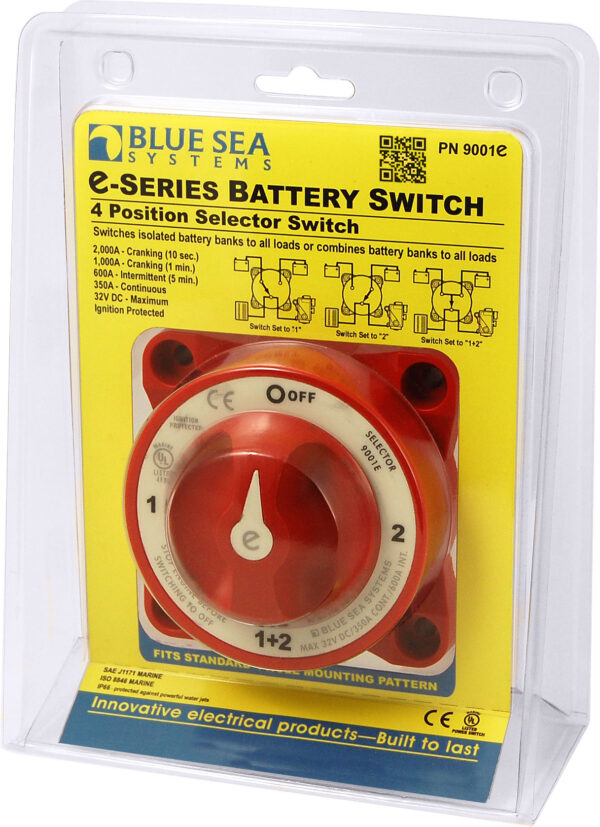

Blue Sea Systems e-Series Selector 4-Position Battery Switch – 9001E
The Blue Sea Systems e-Series Selector Battery Switch switches isolated battery banks to all loads or combines both battery banks to all loads. Its make-before-break contact design allows switching between battery banks without interrupting power to connected loads.
- Make-before-break contact design permits bank selection without power interruption
- Ignition protected for installation aboard gasoline-powered boats

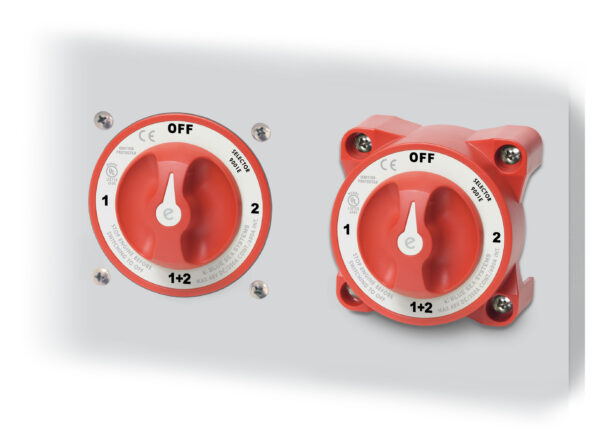

- Case design supports surface or rear-panel mounting
- Four switch positions provide Bank 1, Bank 2, Combined, and Off operation

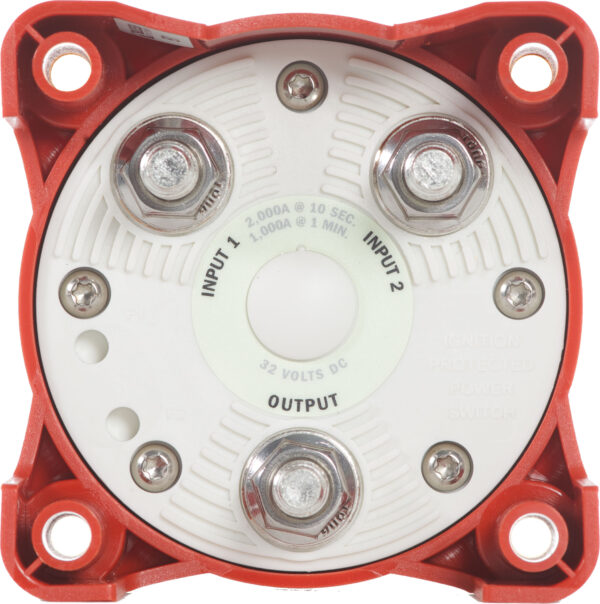

- Tin-plated copper terminal studs support high-current marine battery connections
This switch is intended for properly engineered battery-management systems; confirm cable size, current rating, mounting arrangement, and system voltage before installation.
Specifications
- Switch Type: Selector 4 Position
- Color: Red
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 140 in-lb (15.82 N·m)
- Continuous Rating: 325A
- Intermittent Rating: 600A (5 min)
- Starting Rating: 1200A (30 sec)
- Battery Inputs: 2
- Cable Clearance for 4/0 AWG Cables: 1.10 in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120 mm2)
- Mounting Holes: Accept 1/4 in (M6) screw
- Stud Material: Tinned copper
- Terminal Stud Size: 3/8 in-16 (M10)
- Weight: 1.15 lb (0.52 kg)
- Manufacturer: Blue Sea Systems
- Part Number: 9001E
