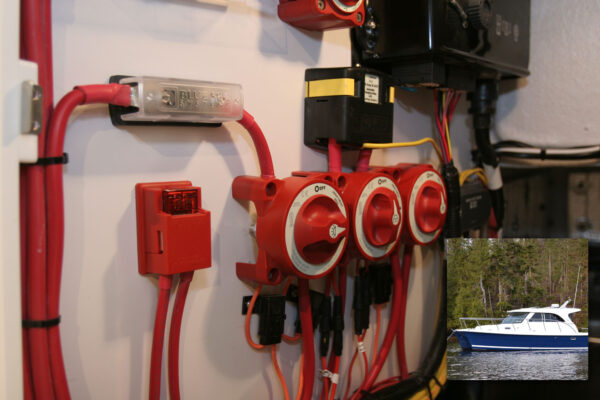

Blue Sea Systems e-Series On Off Battery Switch – 9003E

Description

Blue Sea Systems e-Series On Off Battery Switch – 9003E switches a single battery to a single load group.  It is ignition protected—safe for installation aboard gasoline powered boats and its case design allows surface or rear panel mounting.

Blue Sea Systems e-Series On Off Battery Switch – 9003E Specifications:

• Switch Type:    Single Circuit ON-OFF
• Colour:  Red
• Switch Positions:  2
• Battery Combine:  No
• Alternator Field Disconnect:  No
• Maximum Voltage:  48VDC
• Terminal Stud Torque:  140 in-lb (15.82 Nm)
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 minute)
• Cranking Rating (30 seconds):  1200A
• Battery Inputs: 1
• Cable Clearance for 4/0 AWG Cable:  1.10in (27.94 mm)
• Cable size to meet ratings:  4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4″ (M6) Screws
• Stud Material: Tinned Copper
• Terminal Stud Size: 3/8″ – 16 (M10)
• Weight: 0.95Lb (0.43 Kg)

Blue Sea 9003E Battery Switch Documents

• Instructions
