Description

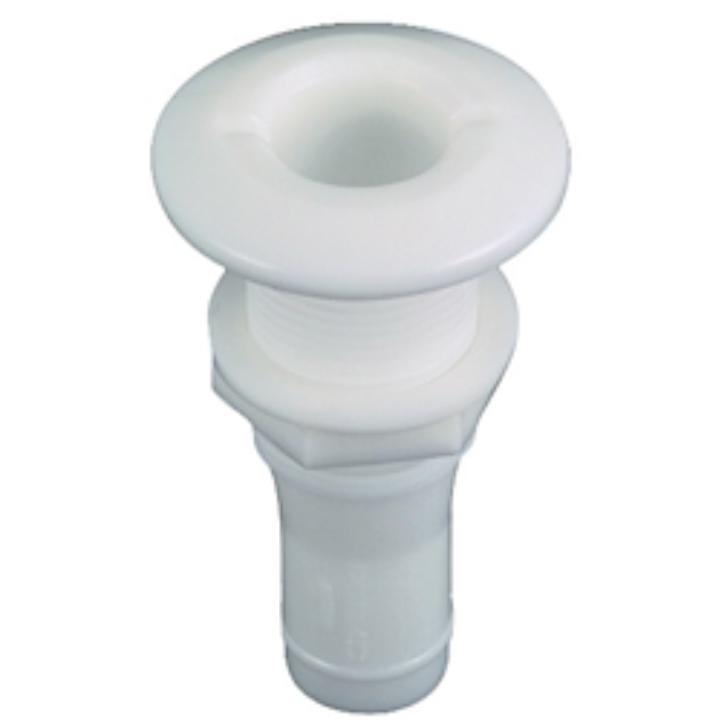

PERKO White Broad-Flange Polymer Thru-Hull for 1-1/2 in. Hose, Retail Pack – 328-DP8
The PERKO Figure 0328 broad-flange through-hull provides a corrosion-free hose connection and a wide exterior bedding surface. This 1-1/2 in.
Product Details
- Broad-flange white moulded-polymer through-hull connection for 1-1/2 in. hose.
- Requires a 1-7/8 in. mounting hole, accepts hull thickness up to 1-7/8 in. and has a 3 in. outside flange diameter.
- The broad exterior flange provides a large bedding surface and a clean finished appearance for above-waterline hose discharge or intake points.
- Figure 0326 is the replacement flanged-lock-nut family; select the nut matching the fitting thread.
- Retail dealer package contains one fitting per card. The corresponding uncarded OEM / bulk figure is listed separately in this workbook.
- PERKO and ABYC guidance caution that hose-connected through-hulls of this type are not recommended for below-waterline installation.
- Use marine bedding compound suitable for the hull and polymer, support the connected hose, and secure it with properly sized marine clamps.
Specifications
- PERKO Manufacturer Part Number: 0328DP8
- PERKO Figure / Series: 0328
- Package Format: Retail dealer package – 1 fitting per card
- Product Type: Broad-flange through-hull connection for hose
- Hose Size: 1-1/2 in.
- Material / Colour: White moulded polymer
- Mounting Hole: 1-7/8 in.
- Maximum Hull Thickness: 1-7/8 in.
- Flange Diameter: 3 in.
- Application: Above-waterline hose connection
- Replacement Lock Nut: PERKO Figure 0326, matching thread
- PERKO OEM / Bulk Package Quantity: 50
