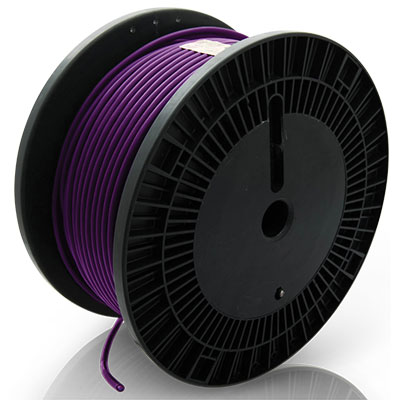

ACTISENSE NMEA 2000 Mid Bulk Cable, LSZH, Sold by the Foot – A2K-MID-BULK

Description

ACTISENSE NMEA 2000 Mid Bulk Cable, LSZH, Sold by the Foot – A2K-MID-BULK

This cut-length listing supplies Actisense NMEA 2000 Mid cable by the linear foot for longer or higher-current backbone sections. Its shielded five-conductor design carries network power and data, while the Low Smoke Zero Halogen jacket provides an added safety advantage in enclosed installation spaces.

• Sold by the linear foot; order the quantity required for the intended continuous cable run
• Mid-size NMEA 2000 cable intended primarily for backbone construction
• Low Smoke Zero Halogen jacket helps reduce smoke and corrosive gas emissions in a fire
• Shielded five-conductor layout supports network power, ground and CAN data communication
• Designed for termination with compatible Actisense field-fit connectors and network hardware

Mid cable can support longer NMEA 2000 backbones than Micro/Lite cable when the network is designed correctly. Calculate voltage drop, backbone length and device loads before installation, and use approved transitions or terminations where the cable size changes.

Specifications:

• Store part number: A2K-MID-BULK
• Current Actisense reel family: A2K-BULK-MID100M
• Sale unit: 1 linear foot (0.3048 m)
• Cable family: NMEA 2000 Mid
• Jacket type: Low Smoke Zero Halogen (LSZH)
• Conductors: Power, ground, CAN-H, CAN-L and shield/drain
• Recommended use: Custom NMEA 2000 backbone runs
• Maximum Mid backbone capability: Up to 250 m when the overall network is designed within NMEA 2000 limits
• Manufacturer warranty: 5 years
