ACTISENSE NMEA 2000 Micro Lite Bulk Cable, Sold by the Foot – A2K-MIC-BULK

Description

ACTISENSE NMEA 2000 Micro Lite Bulk Cable, Sold by the Foot – A2K-MIC-BULK

This cut-length listing supplies Actisense Micro Lite NMEA 2000 cable by the linear foot, allowing installers to build custom cable runs using compatible field-fit connectors. The shielded five-conductor construction carries network power, ground and CAN data while helping protect the bus from radio-frequency interference.

• Sold by the linear foot; select the required quantity for the desired continuous cut length
• Micro/Lite NMEA 2000 cable suitable for custom backbone and drop-cable fabrication
• Five-conductor shielded construction with power, ground, two data conductors and drain wire
• UL-certified cable construction designed for dependable marine-network installations

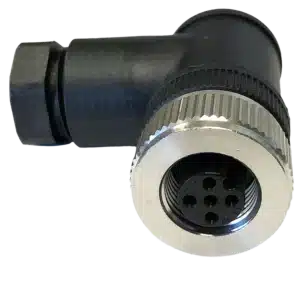

• Compatible with Actisense A2K field-fit connectors and other approved Micro network hardware

Use this cable when a factory-moulded cable assembly is not the right length or when routing requires termination after the cable has been pulled. Follow NMEA 2000 cable-length, voltage-drop and termination rules when designing the network.

Specifications:

• Store part number: A2K-MIC-BULK
• Current Actisense reel family: A2K-BULK-100M
• Sale unit: 1 linear foot (0.3048 m)
• Cable family: NMEA 2000 Micro / Lite
• Conductors: Power, ground, CAN-H, CAN-L and shield/drain
• Jacket: Black PVC
• Nominal outside diameter: 6.85 mm
• Network use: Custom backbone or drop cable, subject to NMEA 2000 limits
• Certification: NMEA 2000 approved cable family; UL certified
