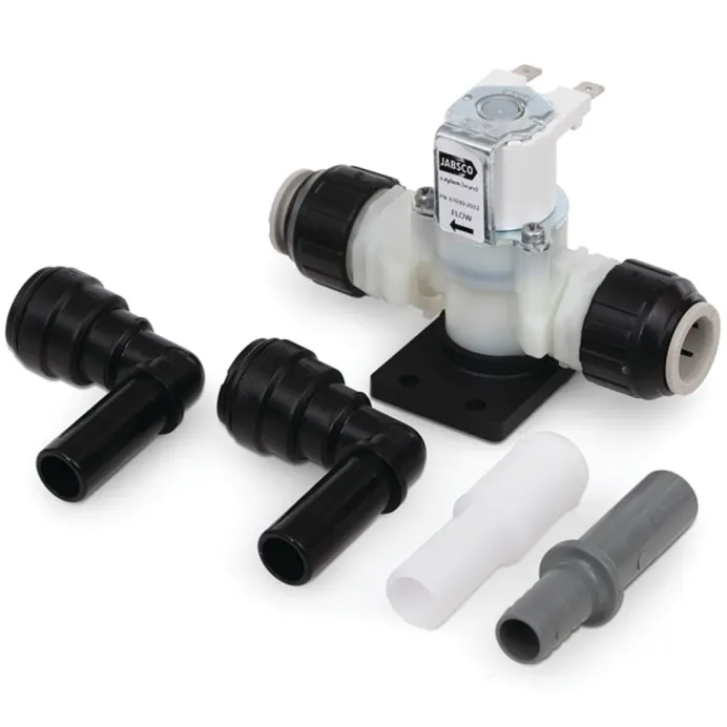

JABSCO Freshwater Toilet Solenoid Valve and Anti-Siphon Breaker, 24V – 37038-2024
The JABSCO 37038-2024 is a 24V DC normally closed solenoid-valve assembly for compatible freshwater Quiet Flush and related JABSCO electric toilets. It meters pressurized freshwater to the toilet and includes backflow protection to help isolate the potable-water system.
- Compatible with selected 37045, 37055, 37075 and 58XX0-series freshwater toilets
- Normally closed valve opens only during the flush cycle
- Double check-valve arrangement helps protect the potable-water supply
- Internal inlet screen helps catch debris before it reaches the valve
- Supplied with mounting bracket and multiple plumbing connection options
Warning: Confirm the exact toilet model, voltage and production generation before ordering. Close all seacocks, isolate electrical power, drain the sanitation system and wear appropriate protective equipment before service. Leak-test and function-test the installation before use.
What’s in the Box
- 1 x JABSCO 37038-2024 solenoid-valve assembly
- 1 x mounting bracket and connection set
Specifications
- Part Number: 37038-2024
- Voltage: 24V DC
- Valve Type: Normally closed
- Connections: 15 mm push-fit, 15 mm hose barb inlet and 19 mm hose barb outlet
- Compatibility: Selected JABSCO freshwater-flush electric toilets
