JABSCO Quiet Flush Marine Toilet Conversion Kit, 12V – 37255-0092

Description

JABSCO Quiet Flush Marine Toilet Conversion Kit, 12V – 37255-0092

The JABSCO 37255-0092 converts many compatible manual and electric marine toilet bowls to a 12V Quiet Flush system. The conversion base combines a remote rinse-water pump arrangement with a macerating waste pump and a control panel that lets the user flush or adjust bowl-water level.

• Fits JABSCO 29090 and 29120 bowls and other toilets using a 95 mm four-hole bowl mounting circle
• Compatible with selected Raritan, Wilcox-Crittenden, Groco and SeaLand bowls
• Dual-function control supports normal flushing and bowl-water adjustment
• White pump cover provides a finished installation
• Conversion base allows retention of a compatible existing china bowl

Warning: Confirm the exact toilet model, voltage and production generation before ordering. Close all seacocks, isolate electrical power, drain the sanitation system and wear appropriate protective equipment before service. Leak-test and function-test the installation before use.

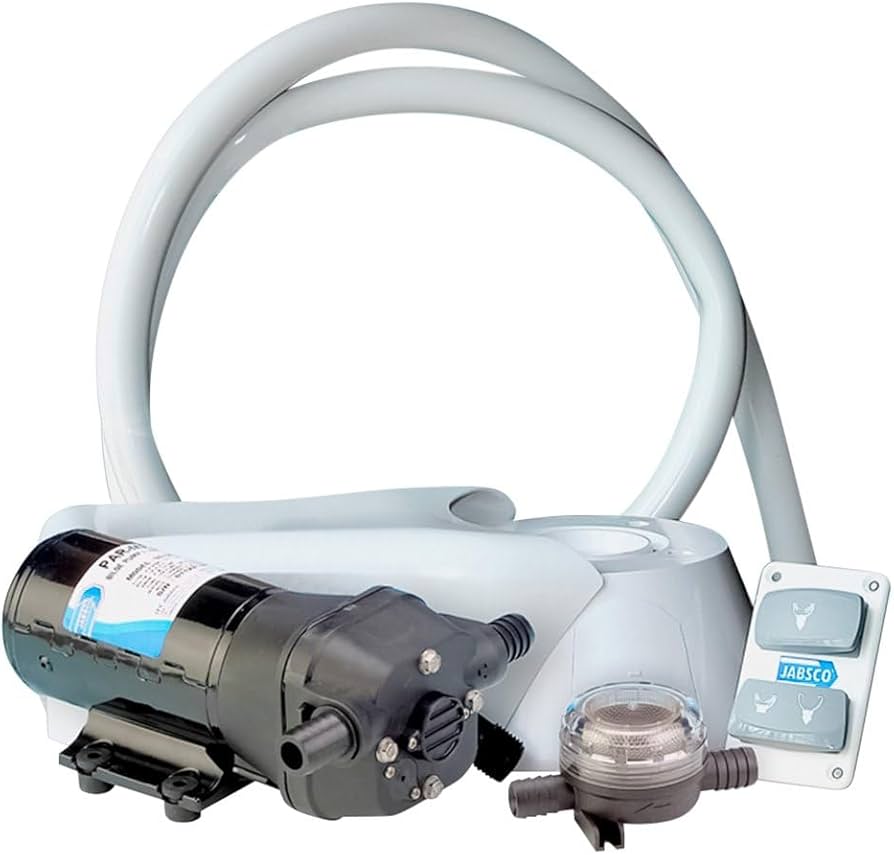

What’s in the Box

• 1 x 12V Quiet Flush conversion base and waste pump
• 1 x rinse-water pump assembly
• 1 x dual-function control panel
• 1 x white pump cover
• Bowl mounting hardware and installation components

Specifications

• Part Number: 37255-0092
• Voltage: 12V DC
• Conversion Type: Quiet Flush seawater/unpressurized-water conversion
• Bowl Mounting Pattern: Approximately 95 mm, four-hole circle
• Compatibility: Selected JABSCO and other marine toilet bowls
