Description

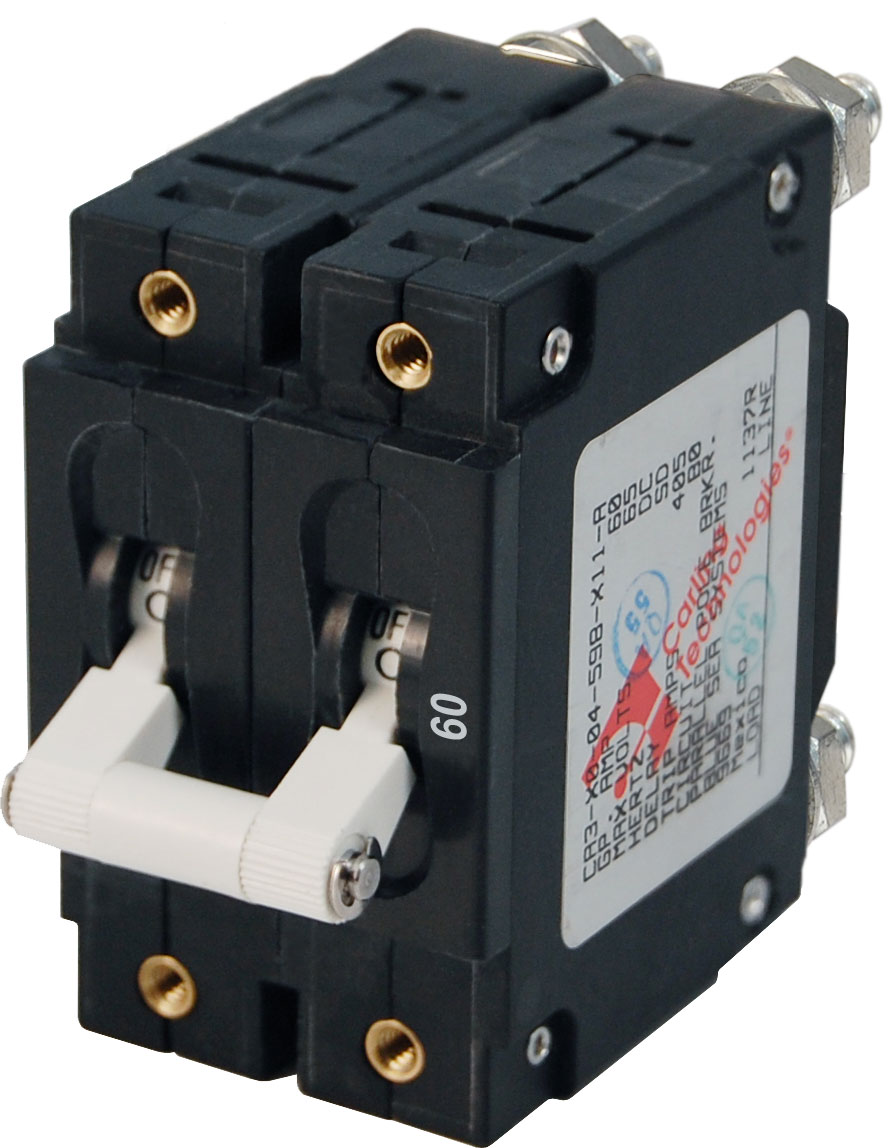

BLUE SEA SYSTEMS C-Series White Toggle Circuit Breaker – Double Pole 60 Amp – 7254.
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
Specifications | |
---|---|
Amperage | 60A AC |
Color | White |
Actuator Style ![]() |
Toggle |
Poles | 2 |
Maximum Voltage | 120V AC 240V AC 80V DC |
Circuit Breaker Type | Magnetic Hydraulic – trip free |
Terminal Stud | 1/4-20 Tin-Plated Brass |
Terminal Stud Torque | 35 in-lb (3.95 Nm) |
Interrupt Capacity ![]() |
5000A @ 240V AC |
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Mounting Screw | #6-32 Stainless Steel |
Mounting Screw Torque | 6 in-lb (0.68 Nm) |
Switching Cycles | 10000 |
Weight | 0.70lb (0.32 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
