Description

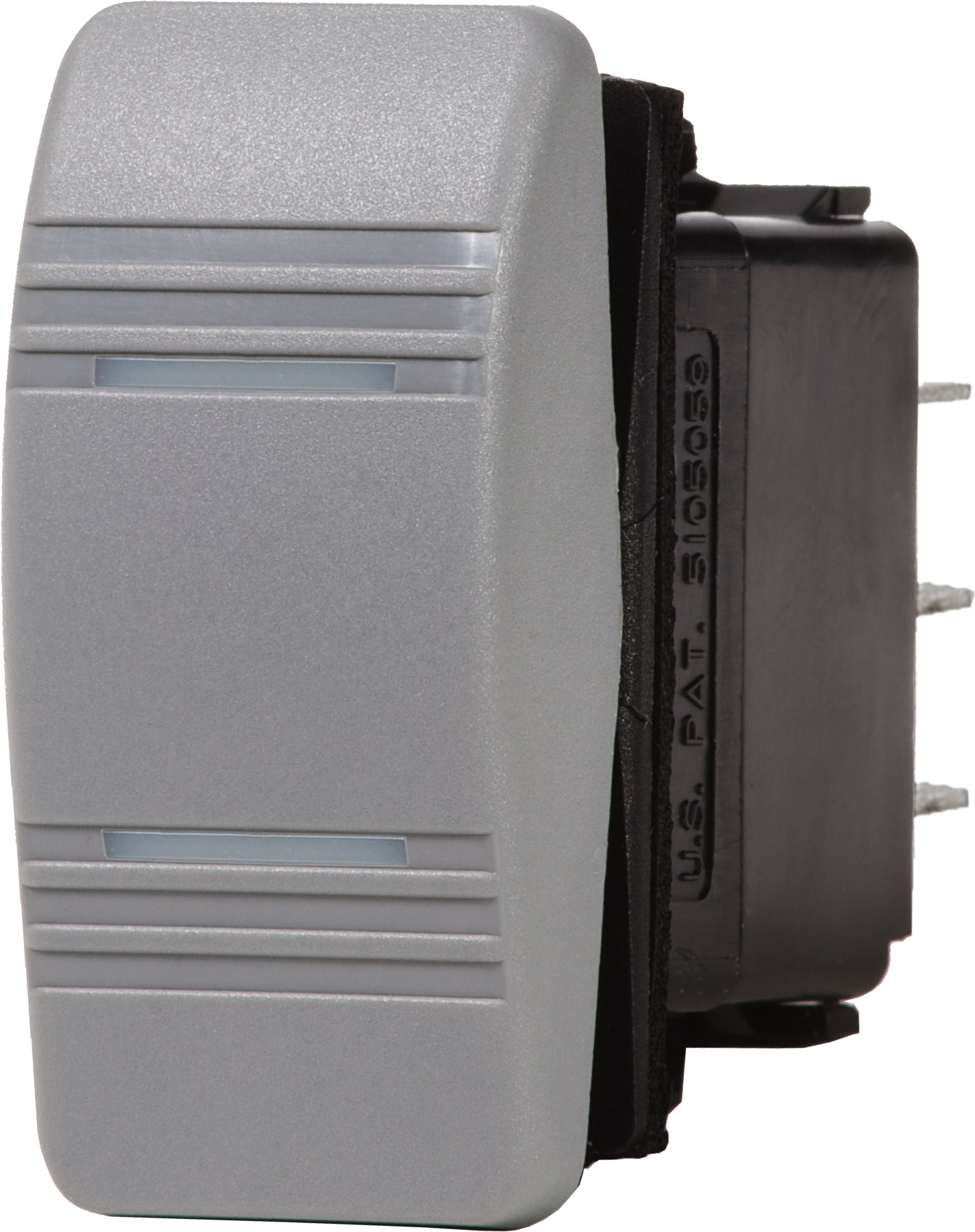

BLUE SEA SYSTEMS Contura Switch SPDT Gray – ON-OFF-ON – 8232.
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems” water resistant panels
- Ignition Protected – Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Specifications | |
---|---|
Action | ON-OFF-ON |
Pole / Throw | SPDT |
Actuator Color | Gray – Contura III |
Common Applications | combining nav lights or anchor light with independent bulbs |
Maximum Amperage | 20A @ 12V 15A @ 24V |
Amperage Operating Current | 18mA (LED) |
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Actuator Position to Light LED | ON |
Embedded LEDs | 2 |
Lighting | LED rated 100,000 hours half-life |
Seals | Internal and external gasket panel seal |
Weight | 0.09lb (0.04 kg) |
Weight | 0.09lb (0.04 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
