Description

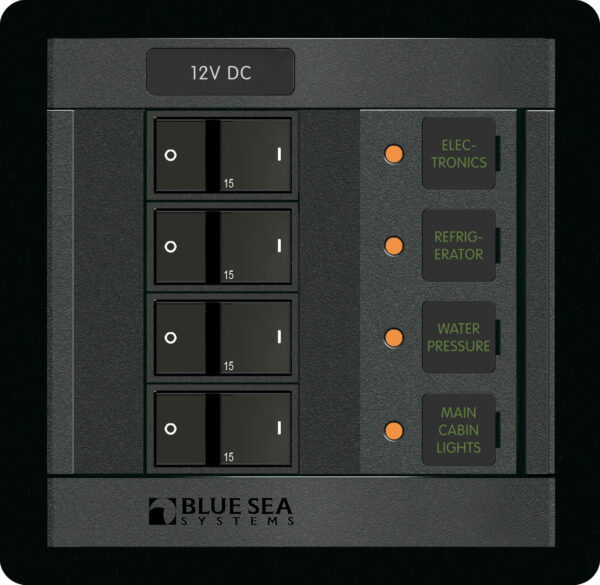

Blue Sea Systems 12 Volt DC 4 Position – 1216
The Blue Sea Systems 12 Volt DC 4 Position is designed for centralized marine electrical distribution and circuit control.
- 4 to 32 branch circuits with installed 15A circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Positions: 4
- Provides a clean, centralized interface for onboard circuit control and monitoring
- Designed to support organized electrical distribution in marine panels and consoles
This panel is intended to support clean, serviceable onboard electrical control. Verify system voltage, branch-circuit ratings, conductor sizes, and installation clearances before installation.
What’s in the Box
- Includes 4205 — Square Format Label Set
Specifications
- Positions: 4
- Nominal Voltage: 12V DC
- Maximum Amperage: 100A
- Height: 4.75 in (120.65 mm)
- Width: 4.88 in (123.95 mm)
- Depth: 3.00 in (76.2 mm)
- Weight: 1.35 lb (0.61 kg)
- Product Dimensions: 12.39 cm L × 12.07 cm W × 7.62 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 1216
