Blue Sea Systems ST-Blade Compact Fuse Blocks – 4 Circuits – 5045

Description

Blue Sea Systems ST-Blade Compact Fuse Blocks – 4 Circuits – 5045

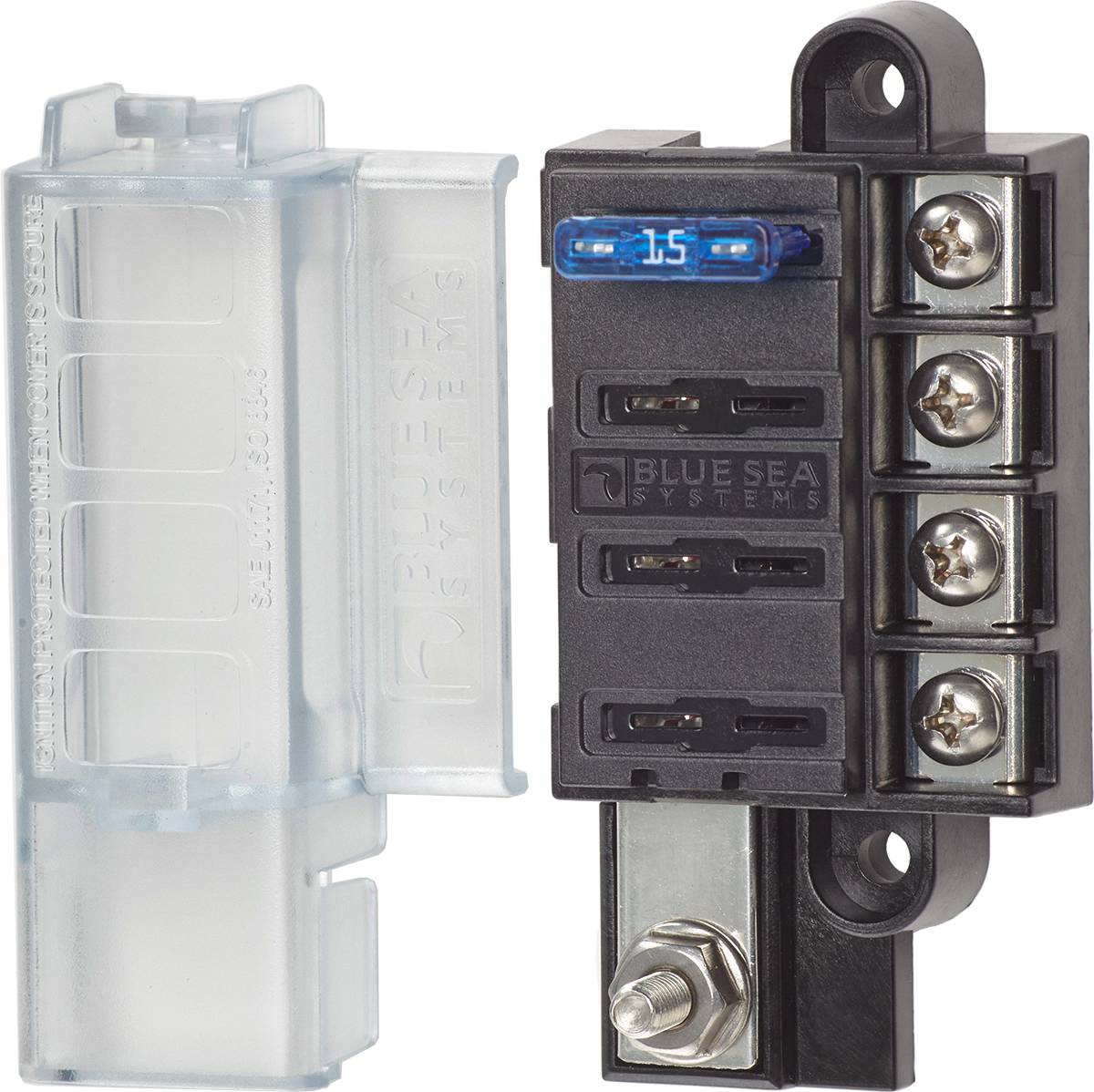

The Blue Sea Systems ST-Blade Compact Fuse Blocks – 4 Circuits provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

• Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Single side design allows wire entry from one side to minimize footprint
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Circuits: 4
• Maximum Amperage: 100A per block 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Terminal Stud Torque: 24 in-lb (2.71 N·m)
• Screw Terminal Torque: 18 in-lb (2.03 N·m)
• Screw Terminal Type: #8-32 Scews with captive star lock washer
• Terminal Stud Size: #10-32
• Weight: 0.25 lb (0.11 kg)
• Overall Dimensions: 2.56 in W × 3.64 in H × 1.28 in D (65.1 mm × 92.5 mm × 32.5 mm)
• Mounting Centers: 1.73 in (43.8 mm)
• Bus Height: 0.34 in (8.6 mm)
• Terminal Height: 0.38 in (9.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5045
