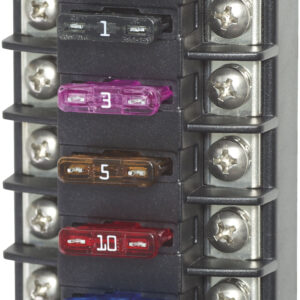

Blue Sea Systems ST-Blade Fuse Block – 12 Circuits with Negative Bus and Cover – 5026B

Description

Blue Sea Systems ST-Blade Fuse Block – 12 Circuits with Negative Bus and Cover – 5026B

The Blue Sea Systems ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover is designed for marine and mobile electrical circuit protection.

• Consolidates branch circuits and in-line fuses
• Positive distribution bus with #10-32 stud
• Cover provides insulated protection and storage for two spare fuses
• Tin-plated copper buses and fuse clips
• Accepts ATO and ATC fast-acting blade fuses

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Circuits: 12
• Maximum Amperage: 100A per block / 30A per circuit
• Maximum Voltage: 32V DC
• Negative Bus: #10-32 stud
• Positive Bus: #10-32 stud
• Recommended Torque: 24 in-lb (2.71 N·m)
• Screw Terminal Torque: 18 in-lb (2.03 N·m)
• Overall Dimensions: 3.315 in W × 6.472 in H × 1.518 in D (84.20 mm × 164.39 mm × 38.57 mm)
• Mounting Centers: 2.500 in W × 5.459 in H (63.50 mm × 138.66 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5026B
