Description

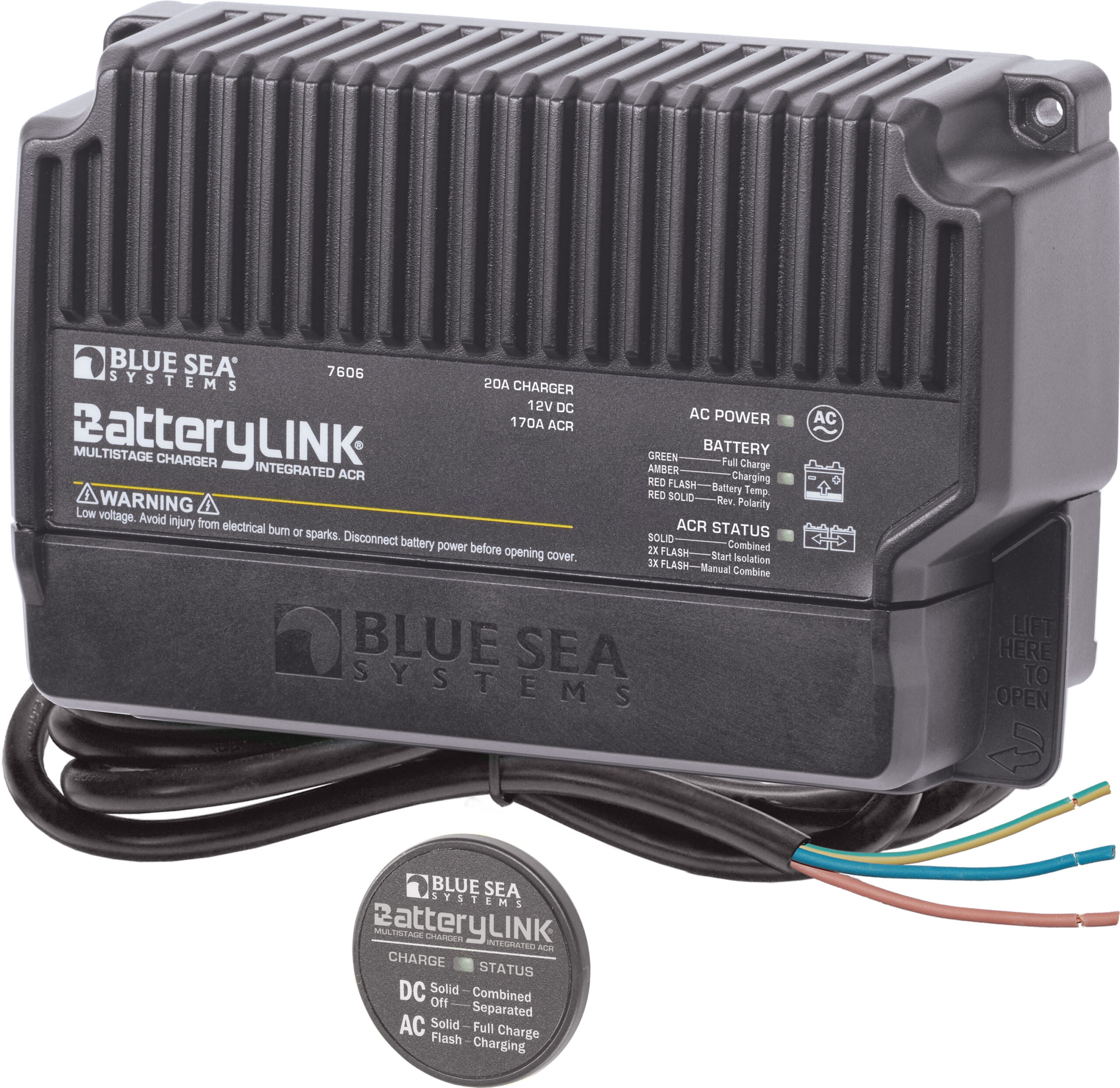

BLUE SEA SYSTEMS Batterylink 12V 20A Bare Wire – 7606. Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR)
- AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery charger
- DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR
- Battery Temperature Compensation prolongs battery life
- Start isolation protects sensitive electronics from voltage sags and spikes
- Emergency parallel allows remote ability to jump start by combining both batteries if start battery is low
- Includes LED remote indicator for charge status at the helm
- Snap-on insulating cover
- One-piece stainless flange nuts ensure safe and secure connections
Specifications | |
---|---|
Total Output Current | 20A DC |
Nominal Output Voltage | 12V DC |
ACR Continuous Rating | 170A |
Output Connections | 1 Negative 2 Positive |
Universal AC Input Voltage | 100-240V AC |
AC Input Frequency | 50/60Hz |
Typical Float Voltage | 13.5V DC |
Typical Absorption Voltage | 14.4V DC |
Operating Current (no AC power) | 10mA |
Plug Style | Bare Wire |
Battery Types | AGM Flooded TPPL |
Recommended Minimum Battery Capacity | 100Ah (20h rate), Per bank |
Recommended Maximum Battery Capacity | 400Ah (20h rate), Total of both banks |
Negative Terminal Stud Size | 1/4″-20 |
Maximum 1/4″ Terminal Stud Torque | 60 in-lb (6.78 Nm) |
Positive Terminal Stud Size | 3/8″-16 |
Maximum 3/8″ Terminal Stud Torque | 140 in-lb (15.82 Nm) |
ACR Combine Voltage | 13.0V (2 min.) 13.5V (30 sec.) |
ACR Open Voltage | 12.75V (30 sec.) 12.35V if voltage is rising |
Warranty | 5 Year |
Weight | 6.75lb (3.06 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
