Description

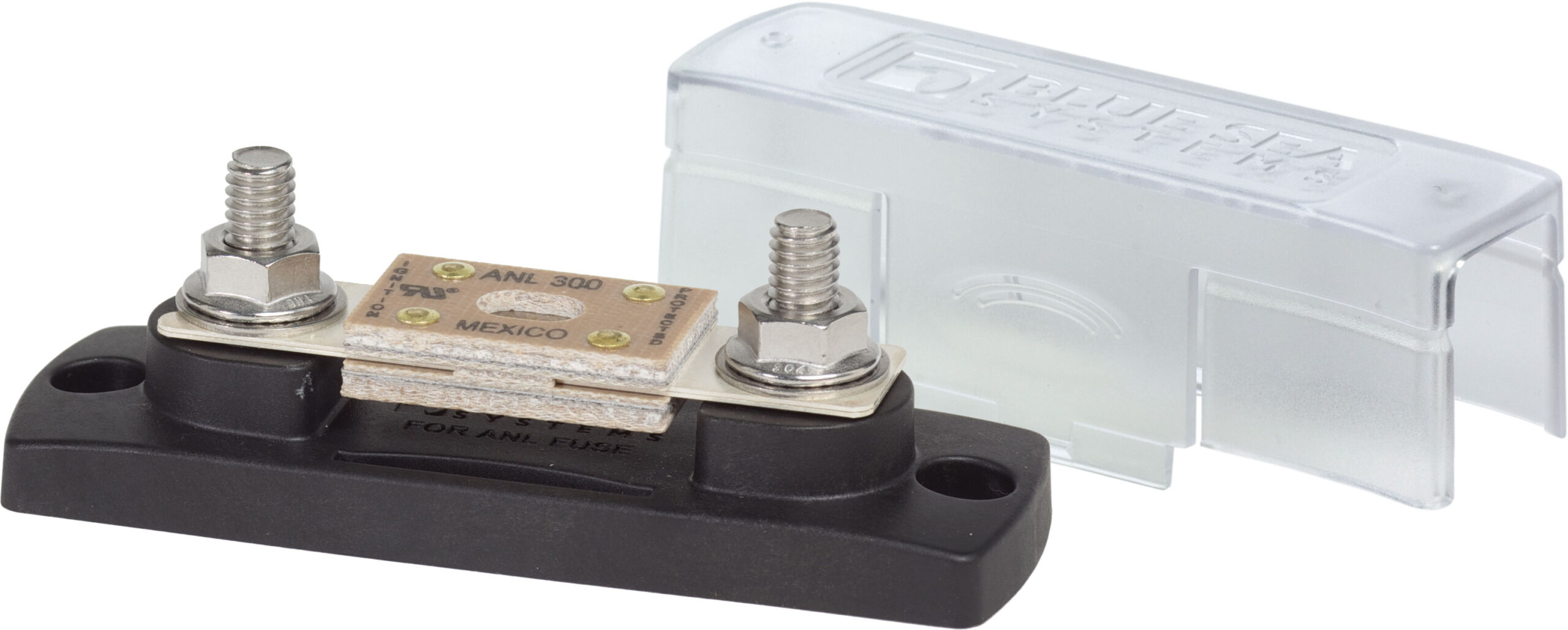

BLUE SEA SYSTEMS Anl Fuse Block 300A W/Cover – 5005.
- Accepts 5/16″ (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
Specifications | |
---|---|
Maximum Voltage | 32V DC |
Base Material | Reinforced Polycarbonate |
Fuse Mounting Blocks | Tin-Plated Copper |
Maximum Cable Size | 2/0 AWG |
Maximum Torque | 110 in-lb (12.43 Nm) |
Terminal Stud Size | 5/16″ – 18 (M8) |
Weight | 0.35lb (0.16 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
