Description

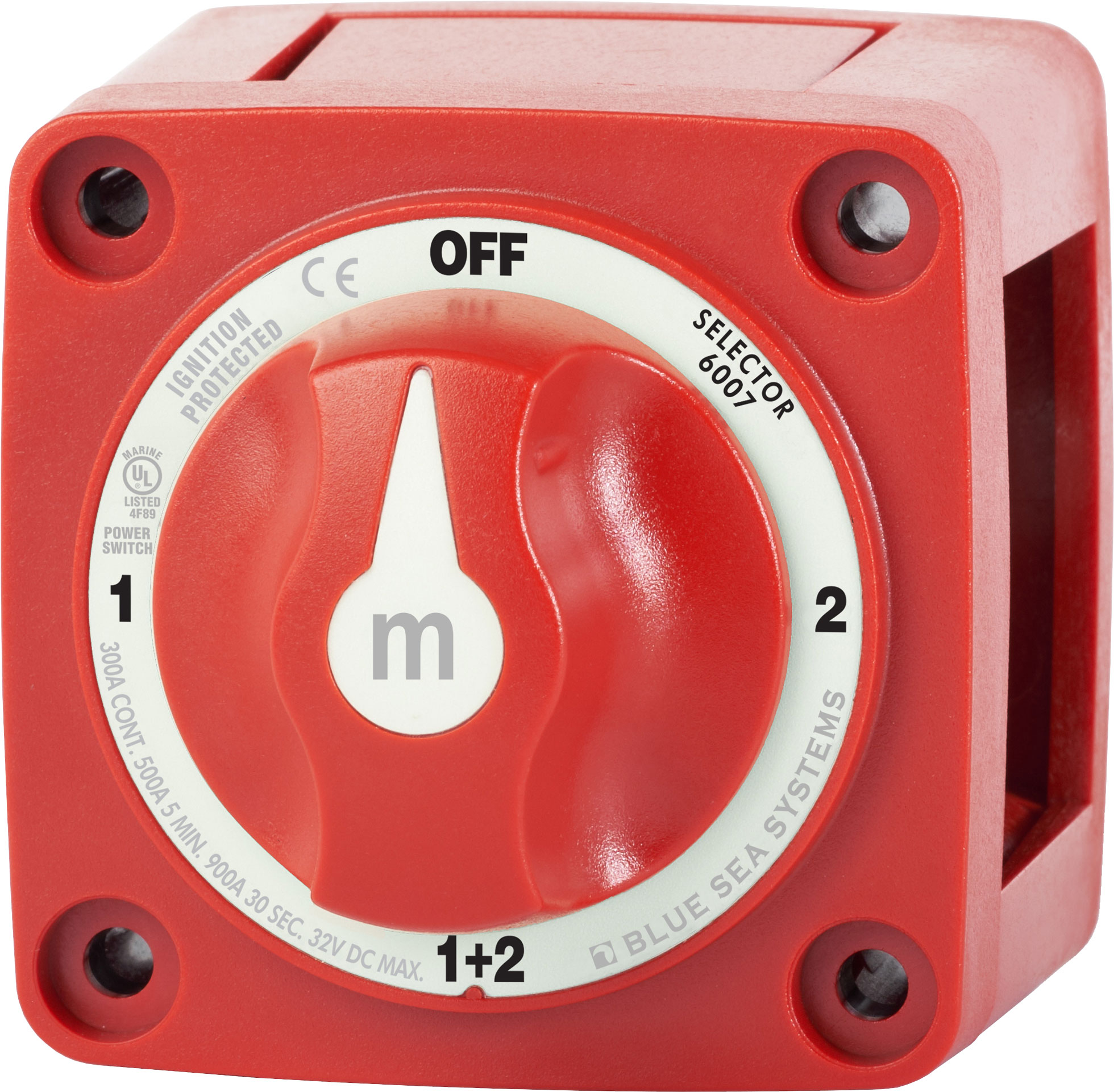

BLUE SEA SYSTEMS m-Series Mini Selector Battery Switch – Red – 6007. Switches isolated battery banks to all loads or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption
Specifications | |
---|---|
Switch Type | Selector 4 Position |
Color | Red |
Switch Positions | 4 |
Battery Combine | Yes |
Alternator Field Disconnect | No |
Maximum Voltage | 32V DC |
Stud Size | 3/8″ |
Terminal Stud Torque | 120 in-lb (13.56 Nm) |
Continuous Rating | 300A |
Intermittent Rating | 500A (5 min) |
Cranking Rating 30 sec | 900A |
Battery Inputs | 2 |
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
Mounting Holes | Accept #10 Screw |
Stud Material | Tinned Copper |
Stud Torque | 120 in-lb (13.56 Nm) |
Terminal Stud Size | 3/8″ – 16 (M10) |
Weight | 0.77lb (0.35 kg) |
Weight | 0.77lb (0.35 kg) |
