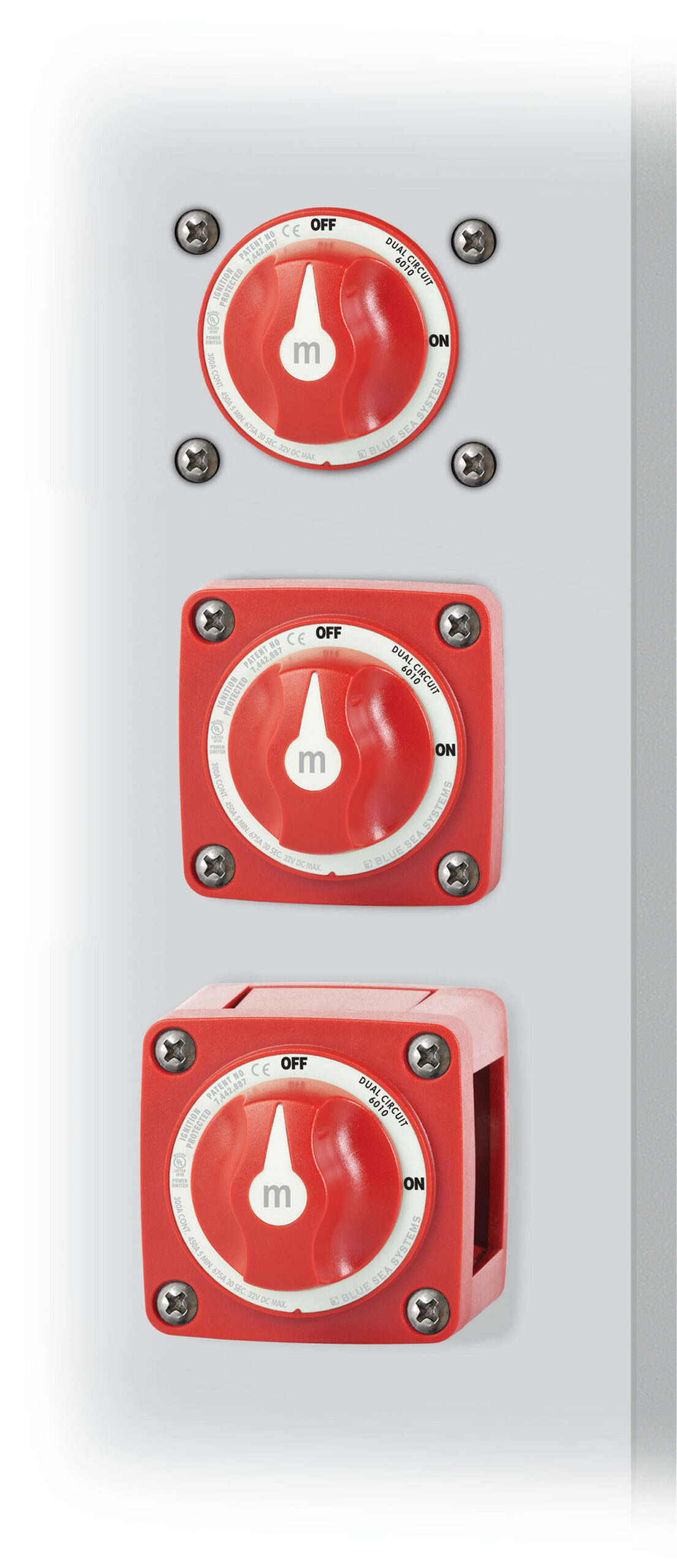

BLUE SEA SYSTEMS m-Series Mini Dual Circuit Battery Switch – Red – 6010

Description

BLUE SEA SYSTEMS m-Series Mini Dual Circuit Battery Switch – Red – 6010.Ã’šÃ‚  Simultaneously switches two isolated battery banks.

Specifications
Switch TypeÃ’šÃ‚	Dual Circuit
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field DisconnectÃ’šÃ‚	No
Maximum Voltage	32V DC
Stud Size	3/8″
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous RatingÃ’šÃ‚	300A
Intermittent RatingÃ’šÃ‚	450A (5 min)
Cranking Rating 30 secÃ’šÃ‚	675A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8″ – 16 (M10)
Weight	0.80lb (0.36 kg)
