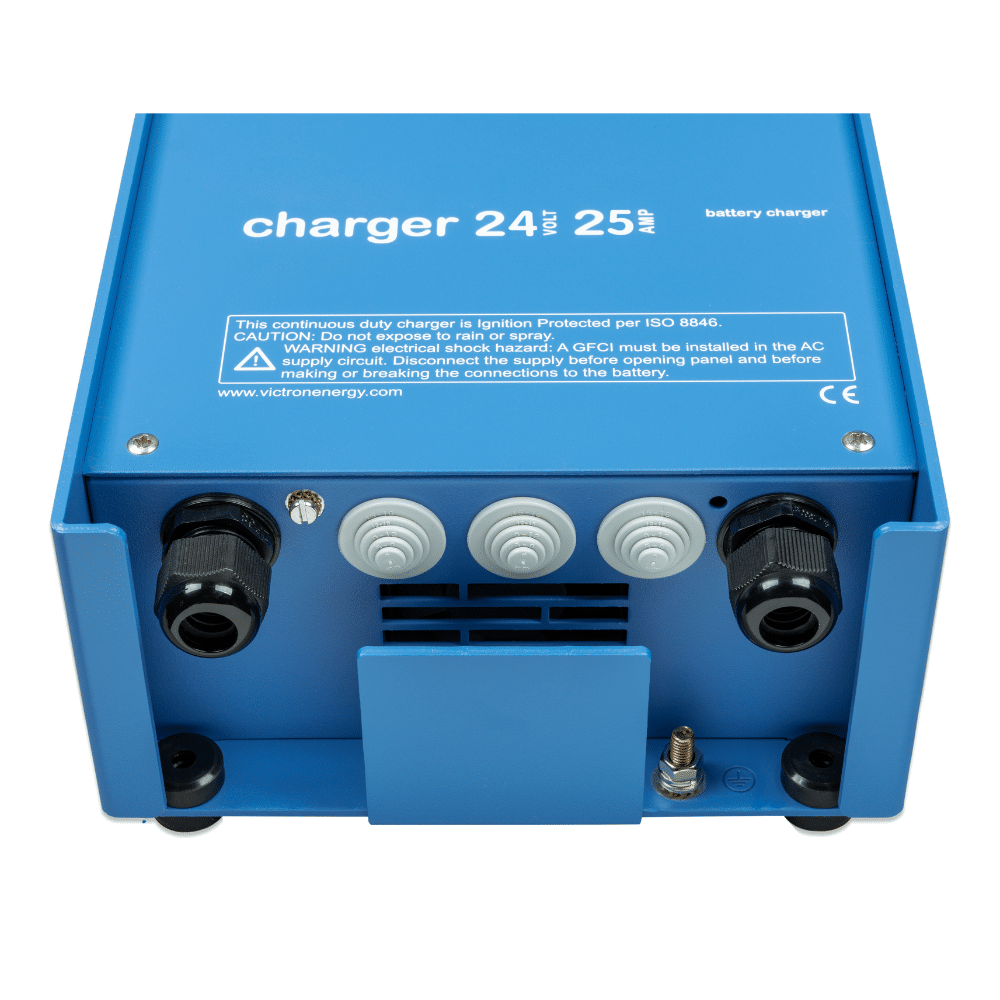

VICTRON ENERGY Phoenix Charger 24/25 (2+1)120-240V – PCH024025001

Description

VICTRON ENERGY Phoenix Charger 24V/25A (2+1) 120-240V – PCH024025001

The Victron Energy Phoenix Charger 24/25 (2+1) 120-240V is a high-performance adaptive battery charger, designed to optimize battery charging efficiency and longevity. Utilizing an adaptive 4-stage charge process (bulk, absorption, float, and storage), it ensures precise charging tailored to different battery types and usage conditions. This smart charger is ideal for marine, RV, off-grid, and industrial applications, providing safe and efficient power management.

Equipped with BatterySafe Mode, the charger prevents excessive gassing and overheating by limiting voltage increases when necessary, ensuring the protection of sensitive battery systems. Storage Mode helps reduce battery aging by lowering the float voltage when no discharge is detected, preventing sulfation and extending battery life.

With a universal input voltage range of 90-265V AC and compatibility with DC power sources up to 400V, the Phoenix 24/25 is a versatile and reliable charger suitable for a wide range of power environments.

Key Features:

• Adaptive 4-Stage Charging: Automatically optimizes charging cycles for different battery conditions and types.
• BatterySafe Mode: Prevents excessive gassing and damage from high-voltage charging.
• Storage Mode: Reduces float voltage when the battery is idle to minimize aging and sulfation.
• Temperature Compensation: Adjusts charge voltage based on temperature to prevent overcharging.
• Universal AC & DC Input: Accepts 90-265V AC or 90-400V DC, ensuring compatibility with various power sources.

The Phoenix Charger 24/25 (2+1) includes two full-power charge outputs and an additional 4A output for maintaining a starter battery. It also features remote monitoring and configuration capabilities via the VE.Configure software and RS-485 interface. The charger’s highly efficient cooling system ensures operation in high-temperature environments, while its rugged aluminum enclosure offers long-term durability.

Specifications:

• Model: Phoenix Charger 24/25 (2+1) 120-240V (PCH024025001)
• Input Voltage Range:
  • AC: 90-265V
  • DC: 90-400V
• Charge Voltage (Absorption Mode): 28.8V DC
• Charge Voltage (Float Mode): 27.6V DC
• Storage Mode Voltage: 26.4V DC
• Charge Current:
  • Main Battery: 25A
  • Starter Battery Output: 4A
• Battery Compatibility: 100-400Ah capacity
• Operating Temperature Range: -20°C to +60°C
• Enclosure Material: Aluminum (Blue RAL 5012), IP21 Rated
• Battery Connection: M6 Studs
• AC Connection: Screw-clamp (4mm², AWG 11)
• Weight: 3.8 kg (8 lbs)
• Dimensions (H x W x D): 350 x 200 x 108 mm (13.8 x 7.9 x 4.3 inches)

The Victron Energy Phoenix Charger 24/25 (2+1) 120-240V is a powerful, intelligent, and versatile battery charger, making it an ideal solution for off-grid, marine, and mobile power applications.
