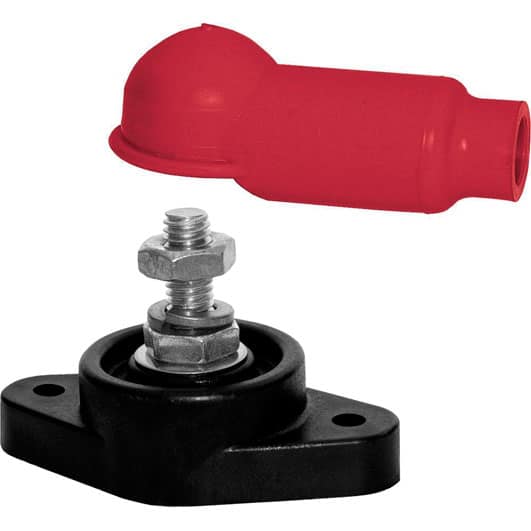

VERTEX 3/8″ Red Single-Point Power Post – 81711

Description

VERTEX 3/8" Red Single-Point Power Post – 81711 is a single-point marine power-distribution post for joining two or more conductors at a common electrical connection while keeping the connection mechanically supported and insulated from the mounting surface.

VERTEX rates this power post to 48 VDC and uses a glass-filled nylon base with stainless-steel post hardware. The large-base design uses 2.5-inch mounting centres.

Features

• 3/8″ main stud
• Red insulated base
• 48 VDC maximum rating
• Glass-filled nylon base
• Stainless-steel post, nuts, flat washer and spring washer
• 2.5″ mounting-centre spacing

Specifications

• Brand: VERTEX Marine
• Manufacturer Part Number: 81711
• Configuration: Single-point distribution post
• Main stud: 3/8″
• Colour: Red
• Maximum voltage: 48 VDC
• Base: Glass-filled nylon
• Post hardware: Stainless steel
• Mounting centres: 2.5″
