RAYMARINE Axiom2 Pro9Rvm Lgthse No Trans – E70654-00-102

Description

The Raymarine Axiom® 2 Pro 9 RVM is a high-performance 9-inch multifunction display built for serious anglers and boaters who demand precision, power, and total system control. Equipped with RealVision MAX™ sonar (sonar module built-in), a blazing-fast six-core processor, and the intuitive LightHouse 4 OS, this version includes LightHouse charts and is ready for full integration with radar, autopilot, cameras, and more.

This model includes the sonar capability but ships without a transducer, making it ideal for boaters who want to pair it with a specific transducer configuration or are upgrading from an existing sonar setup.

Key Features:

• Integrated RealVision MAX™ Sonar: Ready for CHIRP, DownVision™, SideVision™, 3D, and high-power sonar (transducer sold separately).

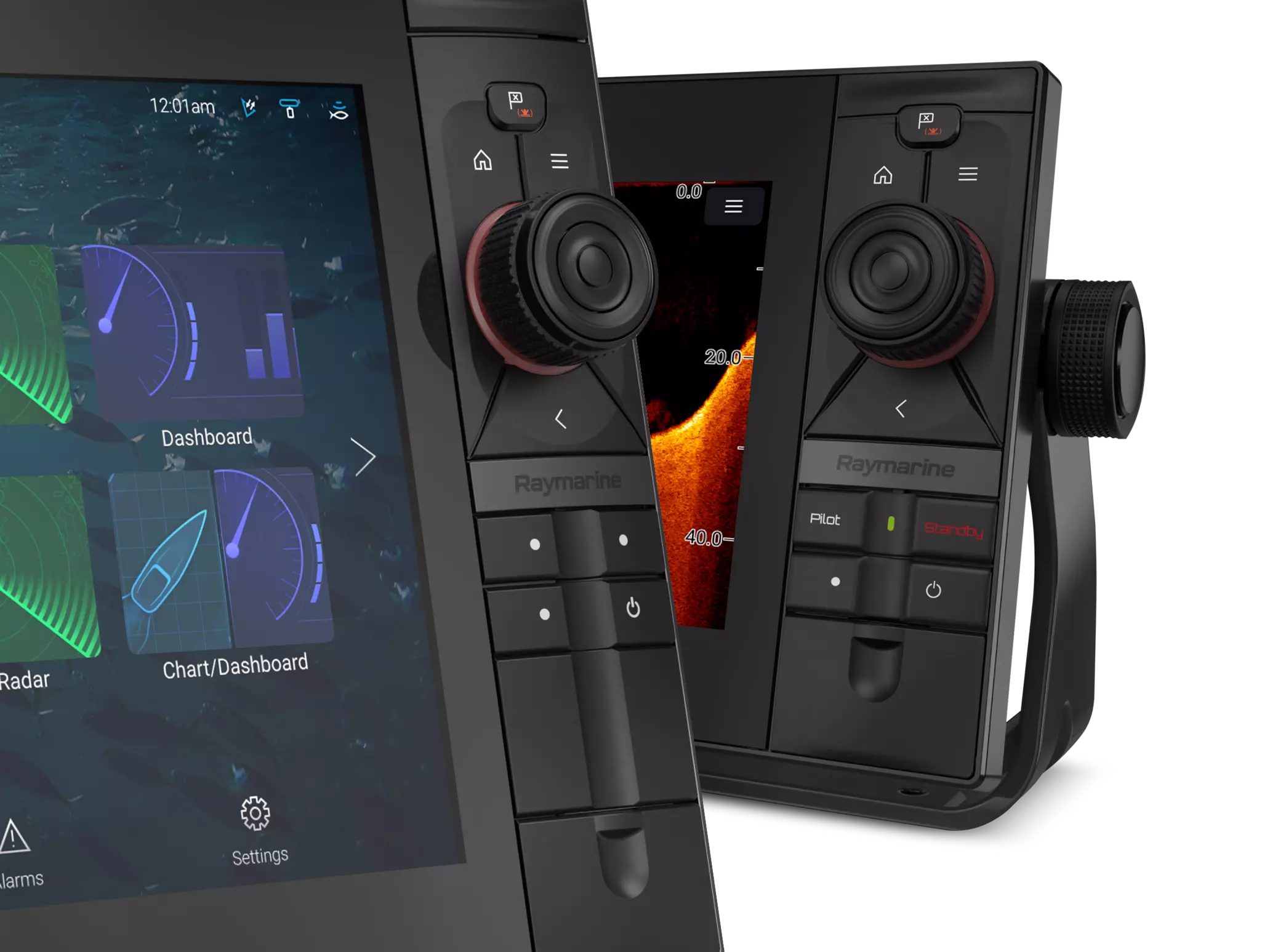

• 9-Inch HybridTouch™ Display: Rugged, optically bonded touchscreen with keypad and rotary knob for all-weather use.

• LightHouse Charts Preloaded: Intuitive and detailed cartography designed by Raymarine for smooth, accurate navigation.

• Next-Gen Performance: Lightning-fast six-core processor with LightHouse 4 OS for fluid operation and customization.

• Expandable System Hub: Seamlessly integrates with radar, AIS, autopilot, FLIR thermal, engine data, and more.

Smarter Navigation, Built-In Sonar Versatility

The Axiom 2 Pro 9 RVM (E70654-00-102) offers the ultimate in navigational and sonar performance, housed in a compact and rugged 9-inch unit. It comes preloaded with Raymarine’s crisp, high-detail LightHouse charts and supports a wide variety of third-party chart formats. Whether you’re navigating tight coastal routes or open water, the responsive touchscreen and ergonomic keypad make control effortless—even in challenging conditions.

Although it ships without a transducer, this unit includes a powerful internal sonar module compatible with RealVision MAX technologies. This makes it a flexible solution for users who want to install their own preferred transducer model for tailored sonar performance, whether for deep-sea fishing, structure scanning, or shallow-water exploration.

Specifications:

• Model Number: E70654-00-102

• Display Size: 9 inches

• Display Type: IPS touchscreen with HydroTough™ optical bonding

• Control Interface: HybridTouch™ (touchscreen + keypad + rotary dial)

• Processor: 6-core high-speed processor

• Operating System: LightHouse 4

• Built-In Sonar: RealVision MAX™

  • Supports: CHIRP, DownVision™, SideVision™, 3D sonar, and 1kW CHIRP

  • Transducer: Not included (sold separately)

• Preloaded Charts: Raymarine LightHouse Charts

• Chart Compatibility: LightHouse, Navionics, C-MAP

• Networking: RayNet Ethernet, NMEA2000, SeaTalkNG, HDMI, USB

• Internal GPS/GNSS: 10Hz GPS receiver

• Radar Support: Quantum, Cyclone, HD Digital, Super HD Color

• Camera Integration: FLIR thermal and Raymarine visible cameras

• Audio Integration: Fusion-Link and NMEA2000 audio systems

• microSD Card Slots: Dual slots

• Connectivity: Wi-Fi and Bluetooth

• Waterproof Rating: IPX6 and IPX7

• Mounting Options: Surface, flush, or trunnion mount

• Power Supply: 12/24V DC

• Dimensions (W x H x D): 282 x 177 x 84 mm

• Weight: Approx. 2.2 kg (4.85 lbs)

• Operating Temp: -25°C to +55°C (-13°F to 131°F)
