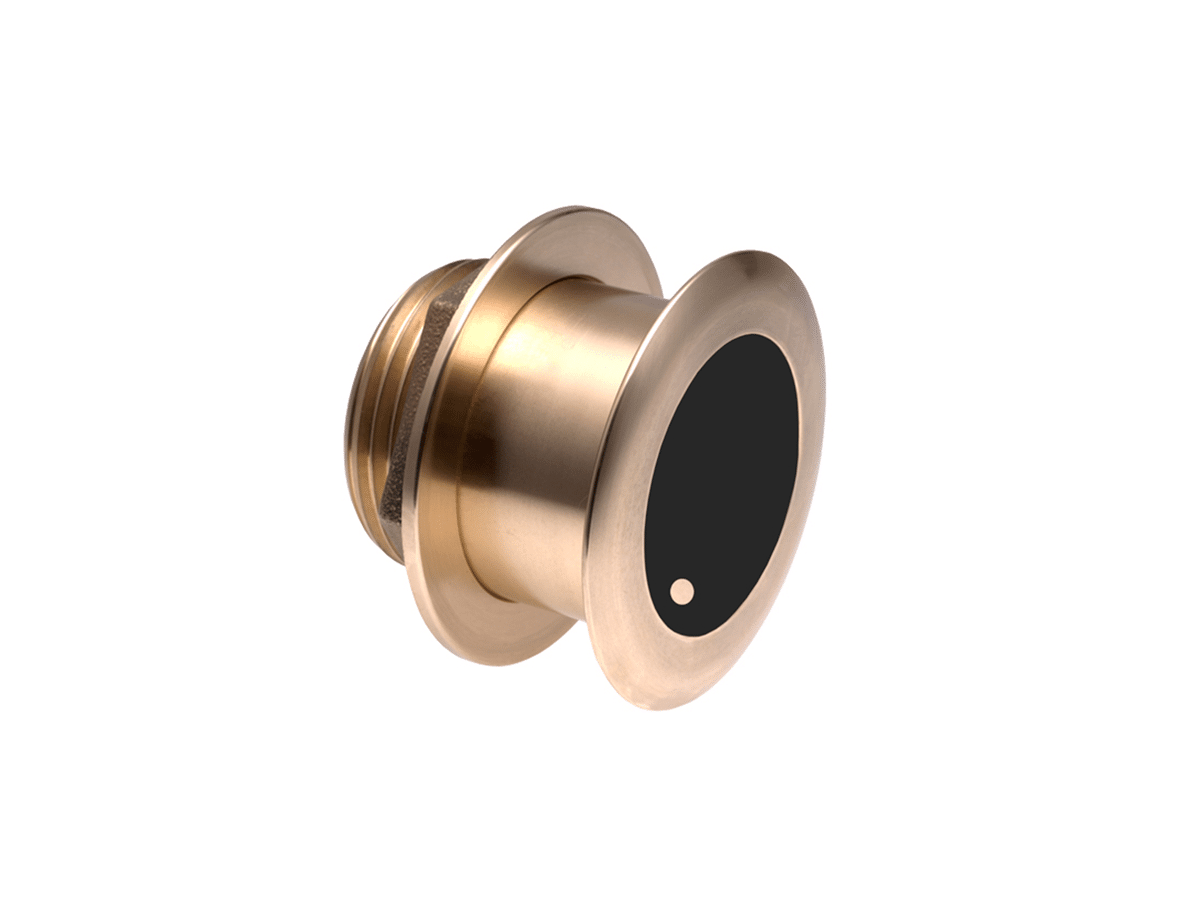

RAYMARINE B164 1 kW Bronze Through-Hull Depth/Temperature Transducer, 12° Tilt – A102112

Description

The Raymarine B164 12° is a high-performance 1 kW bronze through-hull transducer for offshore and deep-water traditional sonar. Its internally tilted element compensates for hull deadrise so the sonar beam points downward without requiring a bulky external fairing block.

Main Features

• 1 kW dual-frequency sonar at 50/200 kHz for deep-water sensitivity and high-frequency target detail.
• 12° tilted element designed for hull deadrise of approximately 8–15°.
• Low-profile bronze housing protrudes less than 6.35 mm (0.25 in) outside the hull.
• Built-in fast-response water-temperature sensor supplies temperature data with sonar depth.
• Direct CP370 connection through the fitted Raymarine 8-pin DSM-style connector.

Raymarine rates the B164 to 1,800 ft at 50 kHz and 800 ft at 200 kHz. Its three-ceramic array is substantially more sensitive than basic 600 W tilted-element models, making it a strong choice for trolling, bottom fishing and structure work where a flush installation is important.

Specifications

• Mount: Through-hull, low profile
• Housing: Bronze
• Power: 1 kW RMS
• Frequency: 50 / 200 kHz
• Beam width: 22° / 6°
• Data: Depth / water temperature
• Maximum depth: 1,800 ft low frequency / 800 ft high frequency
• Tilt: 12°
• Recommended deadrise: 8–15°
• Cable: 9 m (30 ft)
• Hull material: Fiberglass / wood
