Description

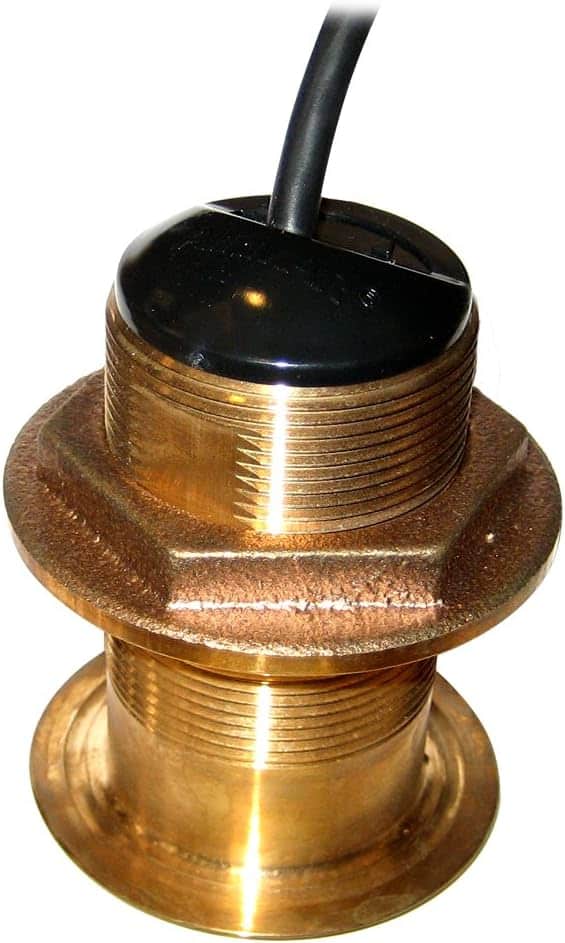

The Raymarine B117 (E66014) is a 600 W bronze low-profile through-hull depth transducer for traditional Raymarine sonar systems. Its flush-style installation reduces drag compared with stem-and-fairing transducers and is intended for relatively flat mounting locations.
Main Features
- 600 W traditional depth transducer for compatible 50/200 kHz Raymarine sonar systems.
- Bronze low-profile through-hull housing for fiberglass and wood hulls.
- 0°–8° deadrise application is suited to relatively flat hull mounting areas.
- Approximately 9 m cable with Raymarine sonar connector.
- Compatible with CP370 and selected legacy sonar modules; newer Axiom-family connections may require the appropriate adapter.
This E66014 version is a depth transducer; it should not be confused with B60/B164 variants that include tilted elements and water-temperature sensing. Correct hull material, mounting location and deadrise remain important for reliable bottom tracking.
Specifications
- Mount: Low-profile through-hull
- Housing: Bronze
- Power: 600 W
- Primary data: Depth
- Deadrise: Approximately 0°–8°
- Cable: Approximately 9 m (29.5 ft)
- Hull material: Fiberglass / wood
- Connection: Raymarine traditional sonar
