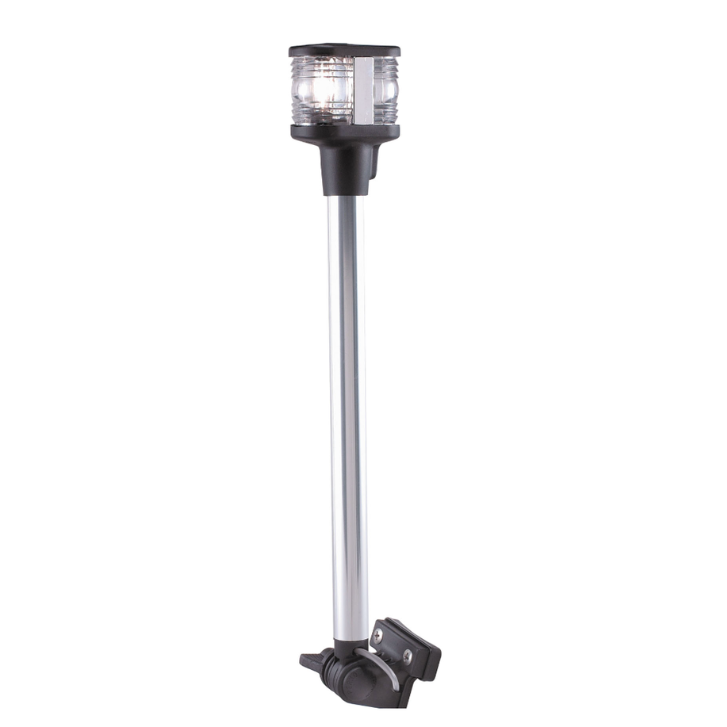

PERKO 12V Combination Masthead and White All-Round Navigation Light, Horizontal Fold-Down – 1181-DP-CHR
This combined pole light provides the required masthead and anchor/all-round functions in separate compartments for vessels under 20 m. Its serviceable incandescent design uses replaceable bulbs, lenses and cap components.
Product Details
- USCG 3 nm certified for sail or power-driven vessels under 20 m (65.6 ft.).
- Two separate light compartments provide masthead and white all-round/anchor functions.
- Black polymer top and base with chrome-plated zinc-alloy components and a clear polymer lens.
- Gold-plated contacts and a 19.1 mm (3/4 in.) anodized-aluminum pole.
- Includes two 12V, 10W bulbs; each compartment draws approximately 0.80A.
- Replacement bulbs: 0071DP0CLR; replacement white lenses: 0278DP0WHT; replacement top cap: 1158DP0BLK.
- For approved legacy 24V applications on boats built before 1 November 2003, PERKO specifies 0072DP1CLR bulbs; consult PERKO for new-construction 24V applications.
- Adjustable base folds down 90 degrees in either direction opposite the plane of the mounting plate.
- Includes an adapter for flat or 45-degree V-type surfaces and a notch for through-base wiring.
- Replacement fold-down base: 1052DPACHR.
What’s in the Box
- Combination two-compartment light assembly.
- Two 12V bulbs.
- Adjustable fold-down mounting base.
- Flat/V-mount adapter.
Specifications
- PERKO Manufacturer Part Number: 1181DP0CHR
- Product Type: Combination masthead / white all-round navigation light
- Certification: USCG 3 nm
- Vessel Length: Under 20 m
- Mounting Style: Horizontal fold-down
- Overall Height: 362 mm (14-1/4 in.)
- Base Dimensions: 50.8 x 38.1 mm (2 x 1-1/2 in.)
- Pole Diameter: 19.1 mm (3/4 in.)
- Voltage: 12V DC
- Bulbs: Two included, 10W each
- Current Draw: Approximately 0.80A per compartment
- Contacts: Gold plated
- Mounting Fasteners: #8 screws
