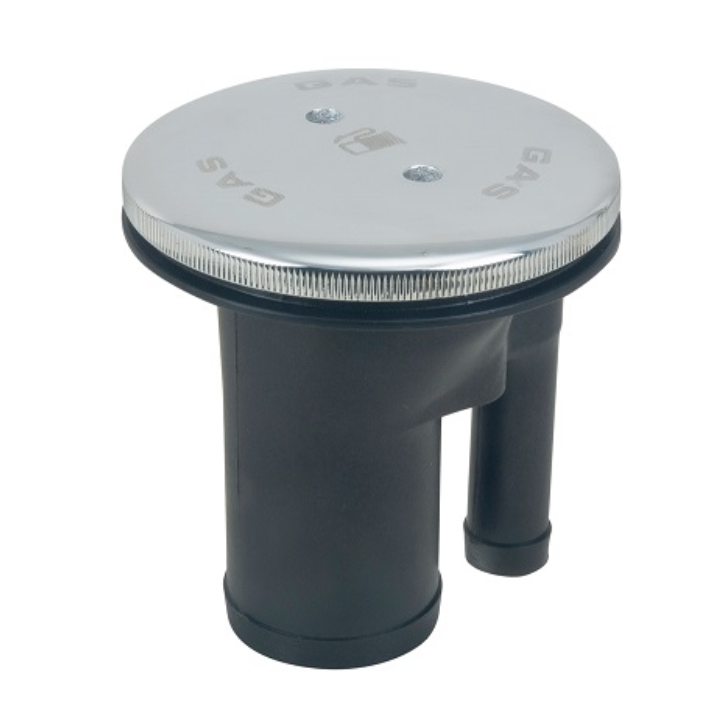

PERKO Chrome-Cap 1-1/2 in. Vented Gas Deck Fill, Straight Neck – 541-DPG-CHR
This vented gasoline deck fill combines the fill and 5/8-inch tank-vent connections in one deck fitting. The straight neck suits the hose routing of the installation while the integral anti-surge valve helps control fuel spitback during refuelling.
Product Details
- Bronze cap with chrome-plated finish, black polymer body and stainless-steel bead chain.
- Connects to 38.1 mm (1-1/2 in.) fill hose and 15.9 mm (5/8 in.) vent hose.
- Integral tank vent includes an anti-surge valve and flame arrestor.
- No separate grounding conductor is required for this bronze-cap/polymer-body design.
- Includes deck-plate key and O-ring; the retail package includes the recommended mounting ring.
- Replacement gas cap with O-ring and retainer: 0540DPG99A; replacement O-ring: 054000099B; key: 1247DP0BLK.
- Meets the cited USCG gasoline fuel-system requirements, but this legacy fill does not meet 40 CFR 1060 evaporative-emissions requirements.
What’s in the Box
- Vented deck-fill assembly.
- Deck-plate key.
- O-ring.
- Mounting ring.
Specifications
- PERKO Manufacturer Part Number: 0541DPGCHR
- Product Type: Vented gasoline deck fill
- Neck Configuration: straight
- Cap Material: Bronze
- Body Material: Polymer
- Finish: Chrome-plated cap with black body
- Fill-Hose Size: 38.1 mm (1-1/2 in.)
- Vent-Hose Size: 15.9 mm (5/8 in.)
- Flange Outside Diameter: 85.7 mm (3-3/8 in.)
- Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
- Neck Length: 61.9 mm (2-7/16 in.)
- Mounting Fasteners: #8 screws
- Replacement Gas Cap: 0540DPG99A
- Replacement O-Ring: 054000099B
- Deck-Plate Key: 1247DP0BLK
