PERKO EPA-Compliant Sealed Gas Deck Fill with VPR, Straight Neck – 661-G00-CHR

Description

PERKO EPA-Compliant Sealed Gas Deck Fill with VPR, Straight Neck – 661-G00-CHR

This integrated gasoline fill combines the 1-1/2-inch fill connection, 5/8-inch tank vent, flame arrestor and anti-surge control in a sealed system designed for regulated evaporative-emissions applications.

Product Details

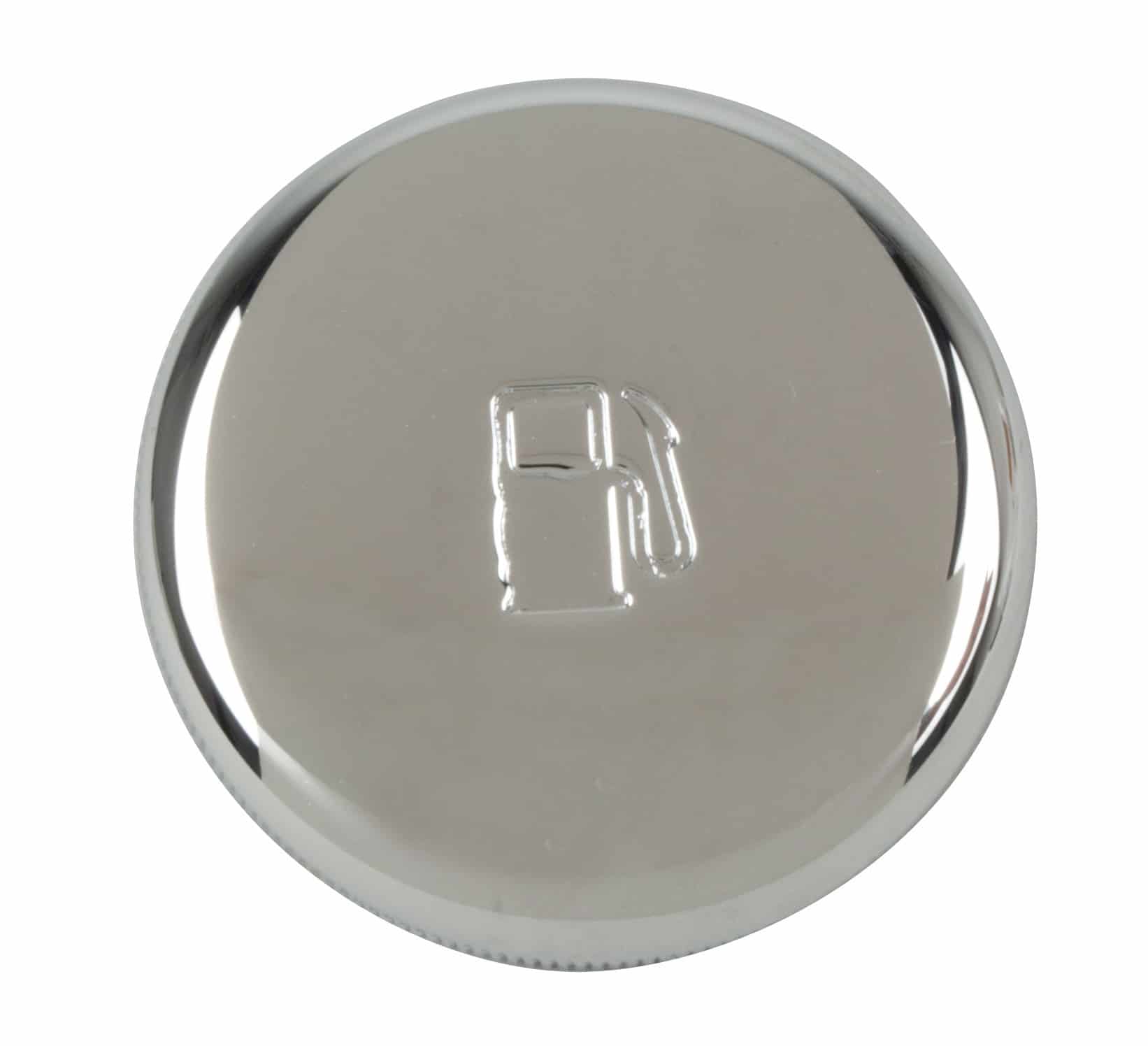

• Chrome-plated bronze ratcheting cap with black polymer fill body.
• Sealed cap incorporates a vacuum-pressure-relief valve for EPA/CARB fuel systems.
• Integral tank vent includes a flame arrestor and anti-surge valve.
• Connects to 38.1 mm (1-1/2 in.) fill hose and 15.9 mm (5/8 in.) vent hose.
• Straight neck is 61.9 mm (2-7/16 in.) long; flange outside diameter is 85.7 mm (3-3/8 in.).
• Requires a 54.0 mm (2-1/8 in.) mounting hole and #8 screws.
• PERKO identifies compliance with applicable CARB/EPA evaporative-emissions requirements and lists certificate KPERPMDRN640-001 and CARB Executive Order RM-17-021.
• Replacement sealed gas cap with O-ring and retainer: 0660DPG99A.
• Install the fill and attach the cap tether ring only after the completed fuel system has passed its required pressure test.

What’s in the Box

• Sealed gas deck-fill assembly with installed ratcheting cap and tether.

Specifications

• PERKO Manufacturer Part Number: 0661G00CHR
• Product Type: EPA-compliant sealed gasoline deck fill
• Cap Material: Chrome-plated bronze
• Body Material: Black polymer
• Cap Type: Ratcheting sealed cap with VPR valve
• Fill-Hose Size: 38.1 mm (1-1/2 in.)
• Vent-Hose Size: 15.9 mm (5/8 in.)
• Flange Outside Diameter: 85.7 mm (3-3/8 in.)
• Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
• Neck Length: 61.9 mm (2-7/16 in.)
• Mounting Fasteners: #8 screws
• Replacement Cap: 0660DPG99A
