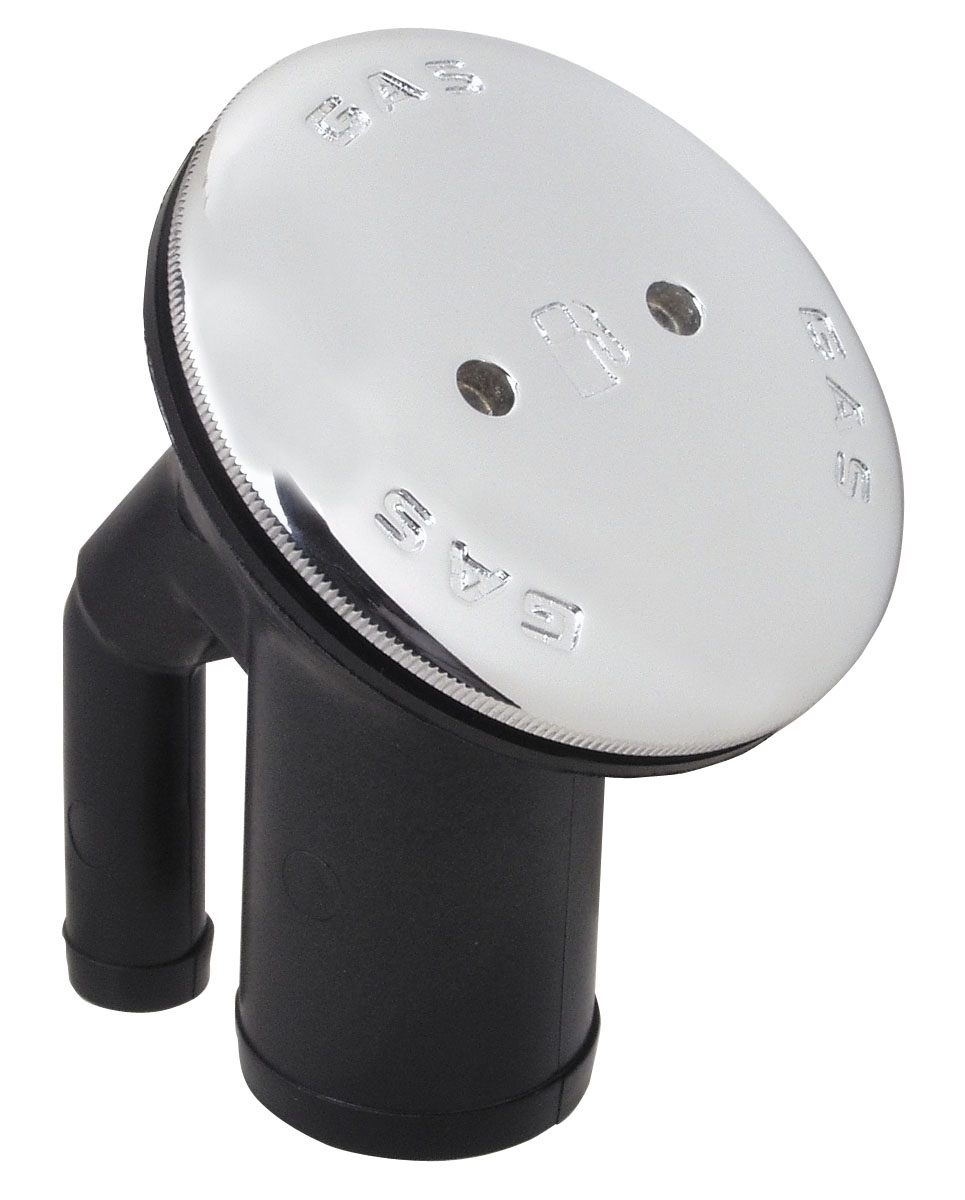

PERKO Chrome-Cap 1-1/2 in. Vented Gas Deck Fill, 35-Degree Angled Neck – 540-DPG-CHR

Description

PERKO Chrome-Cap 1-1/2 in. Vented Gas Deck Fill, 35-Degree Angled Neck – 540-DPG-CHR

This vented gasoline deck fill combines the fill and 5/8-inch tank-vent connections in one deck fitting. The 35-degree angled neck suits the hose routing of the installation while the integral anti-surge valve helps control fuel spitback during refuelling.

Product Details

• Bronze cap with chrome-plated finish, black polymer body and stainless-steel bead chain.
• Connects to 38.1 mm (1-1/2 in.) fill hose and 15.9 mm (5/8 in.) vent hose.
• Integral tank vent includes an anti-surge valve and flame arrestor.
• No separate grounding conductor is required for this bronze-cap/polymer-body design.
• Includes deck-plate key and O-ring; the retail package includes the recommended mounting ring.
• Replacement gas cap with O-ring and retainer: 0540DPG99A; replacement O-ring: 054000099B; key: 1247DP0BLK.
• Meets the cited USCG gasoline fuel-system requirements, but this legacy fill does not meet 40 CFR 1060 evaporative-emissions requirements.

What’s in the Box

• Vented deck-fill assembly.
• Deck-plate key.
• O-ring.
• Mounting ring.

Specifications

• PERKO Manufacturer Part Number: 0540DPGCHR
• Product Type: Vented gasoline deck fill
• Neck Configuration: 35-degree angled
• Cap Material: Bronze
• Body Material: Polymer
• Finish: Chrome-plated cap with black body
• Fill-Hose Size: 38.1 mm (1-1/2 in.)
• Vent-Hose Size: 15.9 mm (5/8 in.)
• Flange Outside Diameter: 85.7 mm (3-3/8 in.)
• Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
• Neck Length: 61.9 mm (2-7/16 in.)
• Mounting Fasteners: #8 screws
• Replacement Gas Cap: 0540DPG99A
• Replacement O-Ring: 054000099B
• Deck-Plate Key: 1247DP0BLK
