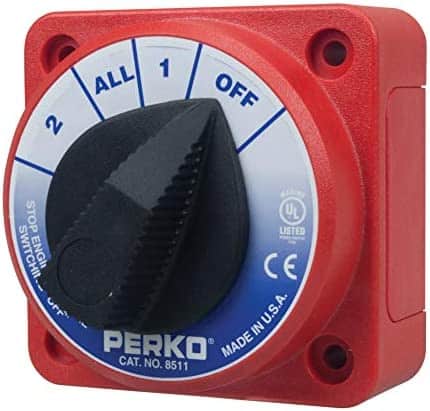

PERKO Compact Medium-Duty Battery Selector Switch, 315A Continuous – 8511-DP
This compact medium-duty battery selector switch provides a durable master-control point for marine battery systems. Its ignition-protected construction permits installation in appropriate gasoline-engine spaces, while the high-capacity brass terminals support substantial starting and house loads.
Product Details
- Ignition-protected marine battery switch for 6-32V DC electrical systems.
- Red polycarbonate housing with high-conductivity brass terminals and a large black rotary knob.
- Rated for 315A continuous service and 450A intermittent service.
- Uses 3/8 in. terminal studs sized to accept heavy battery cables and multiple cable lugs where properly installed.
- Designed for surface mounting and suitable for installation in gasoline-engine compartments when installed in accordance with applicable marine electrical standards.
- Four-position OFF-1-ALL-2 selector permits either battery bank or both banks to be connected.
- Make-before-break switching permits movement between 1, ALL and 2 while maintaining circuit continuity; do not rotate through OFF with an engine running unless the alternator system is protected as specified.
- Does not include alternator field-disconnect contacts.
- Four removable skirt panels provide cable access from multiple directions; optional trim ring 8511TRMRNG hides the mounting holes.
Specifications
- PERKO Manufacturer Part Number: 8511DP
- Switch Function: OFF-1-ALL-2 battery selector
- Voltage Range: 6-32V DC
- Continuous Rating: 315A
- Intermittent Rating: 450A
- Housing: Red polycarbonate
- Terminals: Brass
- Terminal Stud Size: 3/8 in.
- Dimensions: 101.6 x 101.6 x 76.2 mm (4 x 4 x 3 in.)
- Ignition Protected: Yes
- Alternator Field Disconnect: No
- Key Lock: No
