PERKO Heavy-Duty Battery Selector Switch with Alternator Field Disconnect, 380A Continuous – 8603-DP

Description

PERKO Heavy-Duty Battery Selector Switch with Alternator Field Disconnect, 380A Continuous – 8603-DP

This heavy-duty battery selector switch with alternator field disconnect provides a durable master-control point for marine battery systems. Its ignition-protected construction permits installation in appropriate gasoline-engine spaces, while the high-capacity brass terminals support substantial starting and house loads.

Product Details

• Ignition-protected marine battery switch for 6-32V DC electrical systems.

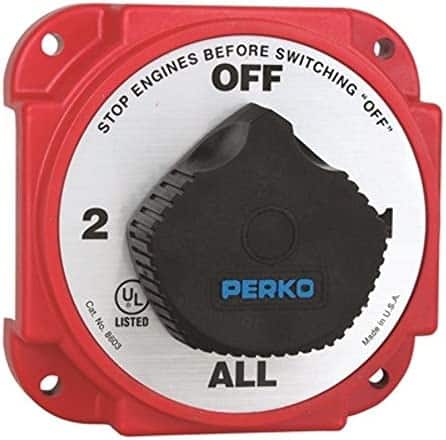

• Red polycarbonate housing with high-conductivity brass terminals and a large black rotary knob.
• Rated for 380A continuous service and 850A intermittent service.
• Uses 1/2 in. terminal studs sized to accept heavy battery cables and multiple cable lugs where properly installed.
• Designed for surface mounting and suitable for installation in gasoline-engine compartments when installed in accordance with applicable marine electrical standards.
• Four-position OFF-1-ALL-2 selector permits either battery bank or both banks to be connected.
• Make-before-break switching permits movement between 1, ALL and 2 while maintaining circuit continuity; do not rotate through OFF with an engine running unless the alternator system is protected as specified.
• Includes alternator field-disconnect contacts intended to reduce the risk of non-unitized alternator damage if the main switch is accidentally turned OFF while the engine is running.

Specifications

• PERKO Manufacturer Part Number: 8603DP
• Switch Function: OFF-1-ALL-2 battery selector
• Voltage Range: 6-32V DC
• Continuous Rating: 380A
• Intermittent Rating: 850A
• Housing: Red polycarbonate
• Terminals: Brass
• Terminal Stud Size: 1/2 in.
• Dimensions: 139.7 x 139.7 x 92.1 mm (5-1/2 x 5-1/2 x 3-5/8 in.)
• Ignition Protected: Yes
• Alternator Field Disconnect: Yes
• Key Lock: No
