Description

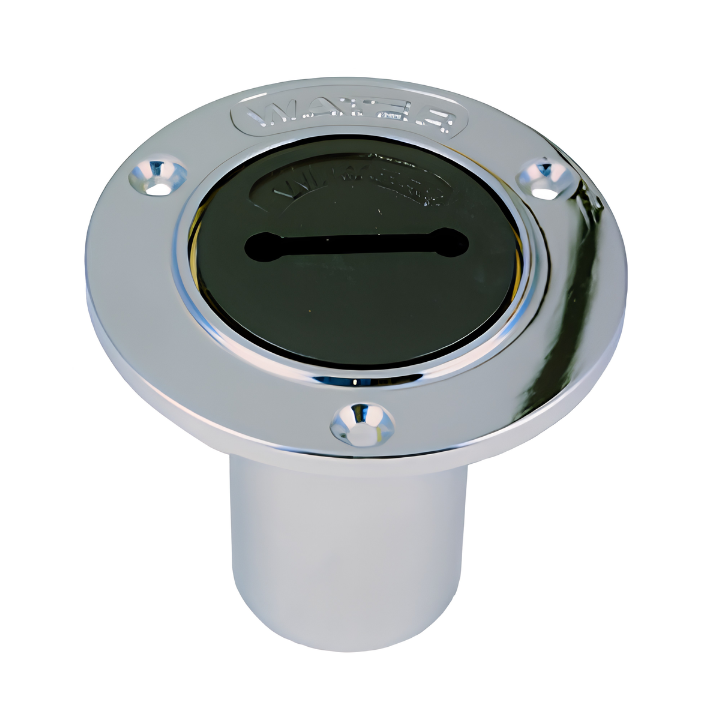

PERKO Chrome-Plated Non-Vented Water Deck Fill for 1-1/2 in. Hose – 1270-DPW-CHR
This non-vented deck fill provides a dedicated, labelled connection for fresh-water systems. The retained cap seals with an O-ring and is opened with the included deck-plate key.
Product Details
- Chrome-plated zinc-alloy body with a black polymer cap.
- Cap is marked for fresh-water service.
- Designed for 38.1 mm (1-1/2 in.) fill hose.
- Includes cap O-ring and integral cap retainer.
- Includes a deck-plate key; the cap has a slot between the key holes.
- Non-vented design requires the vessel system to provide the appropriate separate venting arrangement.

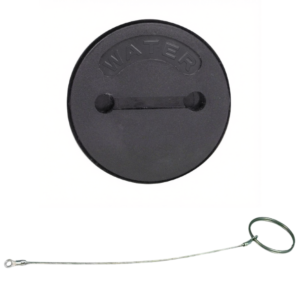

- Replacement cap with O-ring and retainer: 1270DPW99A.
- Replacement O-rings are available as PERKO 0513DP8; replacement deck-plate key is 12487-8DP.
What’s in the Box
- Water deck fill assembly.
- Black retained cap and O-ring.
- Deck-plate key.
Specifications
- PERKO Manufacturer Part Number: 1270DPWCHR
- Product Type: Non-vented water deck fill
- Marked For: Water
- Body Material: Zinc alloy
- Cap Material / Colour: Black polymer
- Finish: Chrome plated
- Hose Size: 38.1 mm (1-1/2 in.)
- Flange Outside Diameter: 79.4 mm (3-1/8 in.)
- Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
- Neck Length: 88.9 mm (3-1/2 in.)
- Ground Wire: No
- Mounting Fasteners: #8 screws
- Replacement Cap: 1270DPW99A
