Description

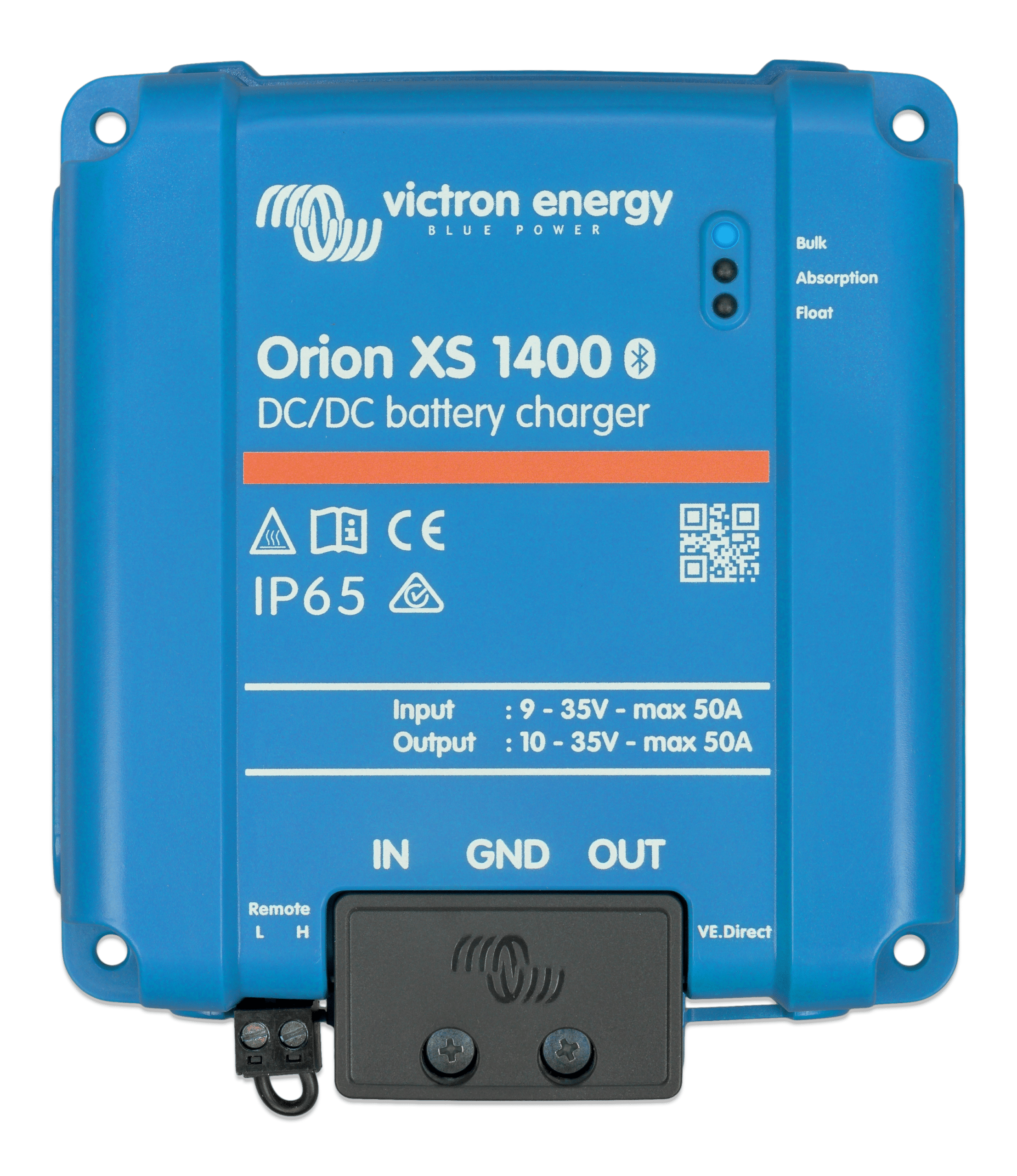

VICTRON ENERGY Orion XS 1400 DC-DC Battery Charger 9-35V Input 10-35V Output – ORI242417040
The Victron Energy Orion XS 1400 is a compact, high-performance DC-DC battery charger designed for dual-battery systems charged by an alternator, including modern intelligent alternators. It can be used as a battery-to-battery charger or as a stable DC power supply, making it suitable for marine, RV, van, service vehicle, and off-grid electrical systems.
With a wide input and output voltage range, the Orion XS 1400 supports 12V, 24V, and mixed-voltage systems. Configurable input and output current limits allow the charger to be tailored to the alternator, battery bank, and wiring in the installation. Built-in Bluetooth and VE.Direct communication provide simple setup, monitoring, and integration through VictronConnect and compatible Victron GX systems.
- 1400W DC-DC battery charger and power supply for 12V, 24V, and mixed-voltage systems
- Wide 9-35V input and 10-35V output range for flexible system design
- Built-in Bluetooth and VE.Direct for setup, monitoring, and Victron system integration
- Configurable input and output current limits help protect alternators, batteries, and cabling
- Fanless IP65 design with up to 98.5% efficiency and full output operation up to 40°C
The Orion XS 1400 includes smart charging features such as a four-stage charge algorithm, engine shutdown detection, remote on/off capability, and VE.Smart Networking support for remote voltage, temperature, and current sensing when used with compatible Victron devices.
Specifications
- Brand: Victron Energy
- Part Number: ORI242417040
- UPC/GTIN: 8719076064848
- Product Type: DC-DC battery charger / DC power supply
- Model: Orion XS 1400
- Nominal System Compatibility: 12V, 24V, and mixed-voltage systems
- Input Voltage Range: 9 – 35V DC
- Output Voltage Range: 10 – 35V DC
- Maximum Output Power: 1400W
- Maximum Efficiency: 98.5%
- Communication: Built-in Bluetooth and VE.Direct
- App Compatibility: VictronConnect
- GX Device Compatibility: Yes, through VE.Direct
- Remote On/Off: Yes
- Engine Shutdown Detection: Yes
- VE.Smart Networking: Yes
- Cooling: Natural convection, fanless
- Protection Category: IP65
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 4 AWG / 21.2 mm²
- Approximate Dimensions: 138.1 mm x 124.4 mm x 53 mm
- Approximate Weight: 0.52 kg / 1.14 lb
- Safety Standard: IEC 62477-1
