GOBIUS SENSOR TECHNOLOGY Gobius 4 Four-Level Water, Fuel and Fluid Tank Monitor – 970497

Description

GOBIUS SENSOR TECHNOLOGY Gobius 4 Four-Level Water, Fuel and Fluid Tank Monitor – 970497

Gobius 4 combines simple at-a-glance indication with a clean external installation. Three sensors attach to the tank wall and feed the Version 5.0 control system, giving the helm clear information on when to refill without exposing a float or probe to the tank contents.

• Four tank states: empty, 1/3, 2/3 and full
• Works with water, diesel, gasoline and other suitable fluids
• External sensors avoid tank penetration and internal moving parts
• Version 5.0 system is designed for quick retrofit on new or older tanks

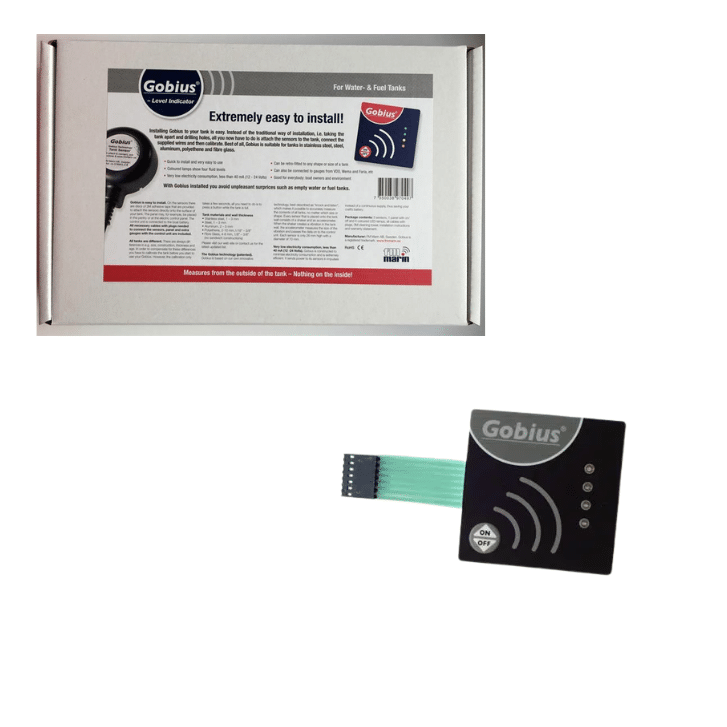

• Complete package includes panel, control unit, three sensors and standard power/panel cables

For owners who want straightforward, dependable tank awareness rather than another sender to service, Gobius 4 is an elegant marine-friendly solution.

Specifications

• Version: 5.0
• Levels: Empty, 1/3, 2/3, full
• Sensors: 3 external sensors with 1 m cables
• Supply voltage: 12-24 V DC
• Typical consumption: Approximately 40 mA idle; 200 mA while measuring for 1 second per sensor
• Panel size: Approximately 60 x 60 x 4 mm
• Control unit size: Approximately 160 x 130 x 26 mm
• Sensor size: Approximately 70 mm diameter x 27 mm high
• Standard panel cable: 1.5 m
• Standard DC cable: 1.8 m
• Manufacturer listed weight: 0.6 kg
