ACTISENSE PRO-NDC-1E Intelligent Type-Approved NMEA 0183 Multiplexer – PRO-NDC-1E

Description

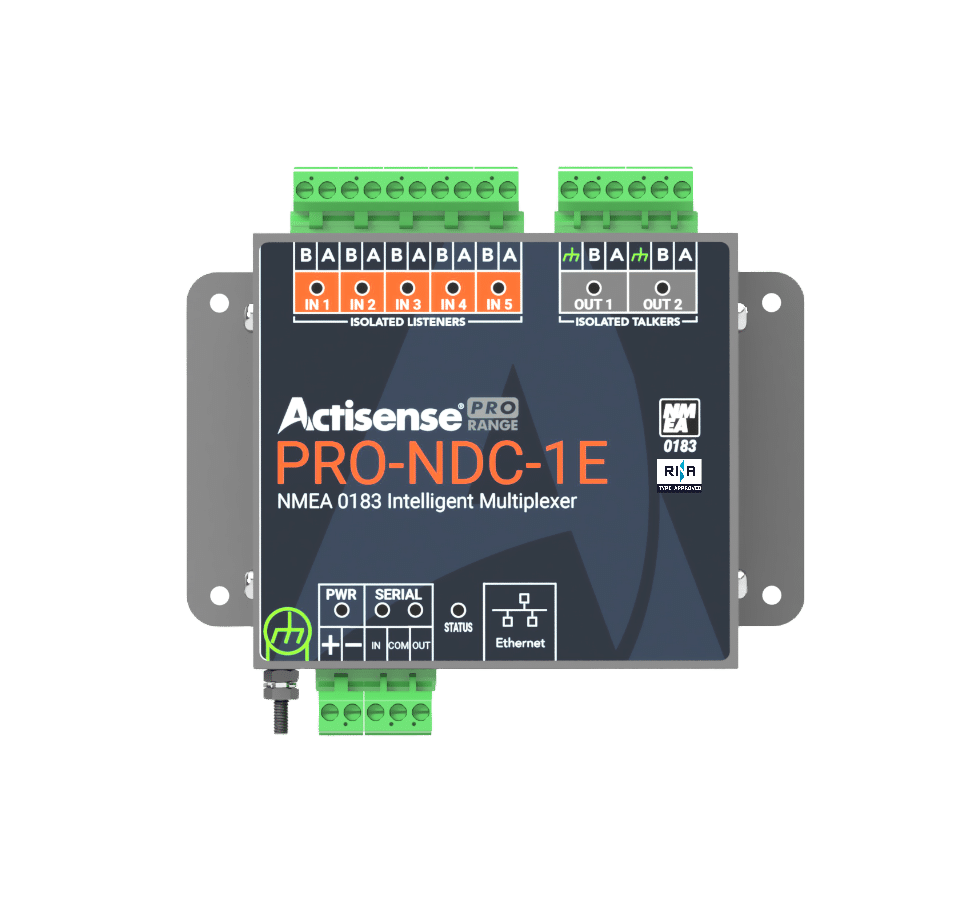

ACTISENSE PRO-NDC-1E Intelligent Type-Approved NMEA 0183 Multiplexer – PRO-NDC-1E

The Actisense PRO-NDC-1E combines data from multiple NMEA 0183 talkers and routes it to a smaller number of outputs without electrical conflicts. Designed for professional and commercial marine systems, it offers flexible baud-rate handling, priority auto-switching, sentence filtering and Ethernet data streaming.

• Five NMEA 0183 inputs combine data from multiple navigation instruments
• Two isolated ISO-Drive outputs protect connected listener equipment
• Ethernet port streams NMEA 0183 data to networked applications and devices
• Automatic baud-rate matching and priority input switching simplify integration
• Sentence-level filtering, routing and monitoring provide precise control of vessel data

Use the PRO-NDC-1E where several GPS, AIS, wind, depth or other NMEA 0183 sources must be combined and distributed reliably. For installations that also require direct NMEA 2000 connectivity, consider a compatible NMEA 2000 gateway in the system design.

Specifications:

• Part number: PRO-NDC-1E
• NMEA 0183 inputs: 5
• NMEA 0183 outputs: 2 ISO-Drive isolated
• Additional interfaces: Ethernet and serial
• Functions: Multiplexing, filtering, routing and auto-switching
• Configuration: Web-based configuration
• Mounting: Bulkhead or optional DIN rail
• Listed package weight: 0.46 kg
• Listed package dimensions: 23.5 x 15.5 x 6.5 cm
• Approval: Marine Type Approved
