Description
MARETRON Ultrasonic Wind/Weather Station – WSO200-01. The second generation WSO200 is a marine grade ultrasonic weather station that accurately measures wind speed and direction, air temperature, barometric pressure, relative humidity, wind chill factor, heat index, and dew points. The wind measurement is calculated using six ultrasonic sensors in delta configuration, which means there are no moving parts to wear out or to get caught in the rigging. Unlike mechanical anemometers and weather measuring devices, the WSO200 is not affected by the common issues such as bearing wear, salt and dirt build-up, or bird perching that can all result in failure or data inaccuracy.
- Measures wind speed and direction, air temperature, barometric pressure, relative humidity, wind chill factor, heat index, and dew points
- Calculates using six ultrasonic sensors in delta configuration, with no moving parts to wear out, or get caught in the rigging
- Unaffected by issues such as bearing wear, salt and dirt build-up, or bird perching
- Precise wind speed and direction under tilt of up to 30 degrees
- Second generation enhancements are a user replaceable humidity sensor, higher signal to noise ratio, and lower power consumption
- NMEA2000 certified

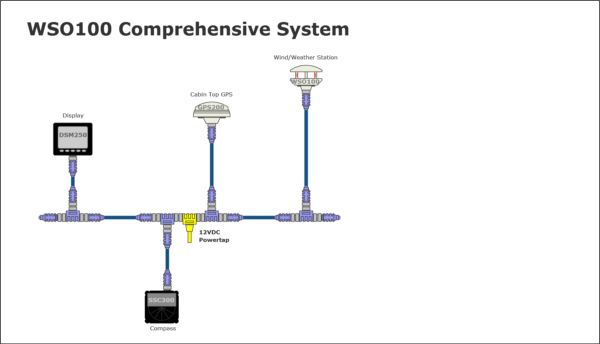

- When combined with a Maretron DSM or dedicated TSM series display, or any device running N2KView V3 software, all data is visible on the NMEA2000 network for plug and play experience
- Add Maretgron DST110 triducer, GPS200 GPS receiver, and SSC300 compass to view true vessel referenced wind speed and direction, as well as ground referenced speed and direction
- Mounts on 1”-14 TPI standard marine mount
- IP67 rated
- 9-32VDC
- Average current drain: < 50 mA
- Dia: 5.91” x H: 4.85” (including mounting bracket)
Precise wind speed and direction is easily achieved under tilt of up to 30°, as can be the case with heeled sailboats or powerboats operating in pitching and rolling seas. This makes the new Maretron weather station a gamechanger for recreational boaters. The WSO200 is NMEA 2000® certified. When combined with a Maretron DSM Series or dedicated TSM Series display or any device running N2KView® V3 software, all data is visible on the NMEA 2000 network for a truly plug and play experience. Add a Maretron depth, speed & temperature triducer (DST110), a Maretron GPS receiver (GPS200), and a Maretron compass (SSC300) to view true vessel referenced wind speed and direction as well as ground referenced speed and direction. The WSO200 mounts on a 1”-14 Standard Marine Mount and is waterproof to IP67 standards
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
