Description

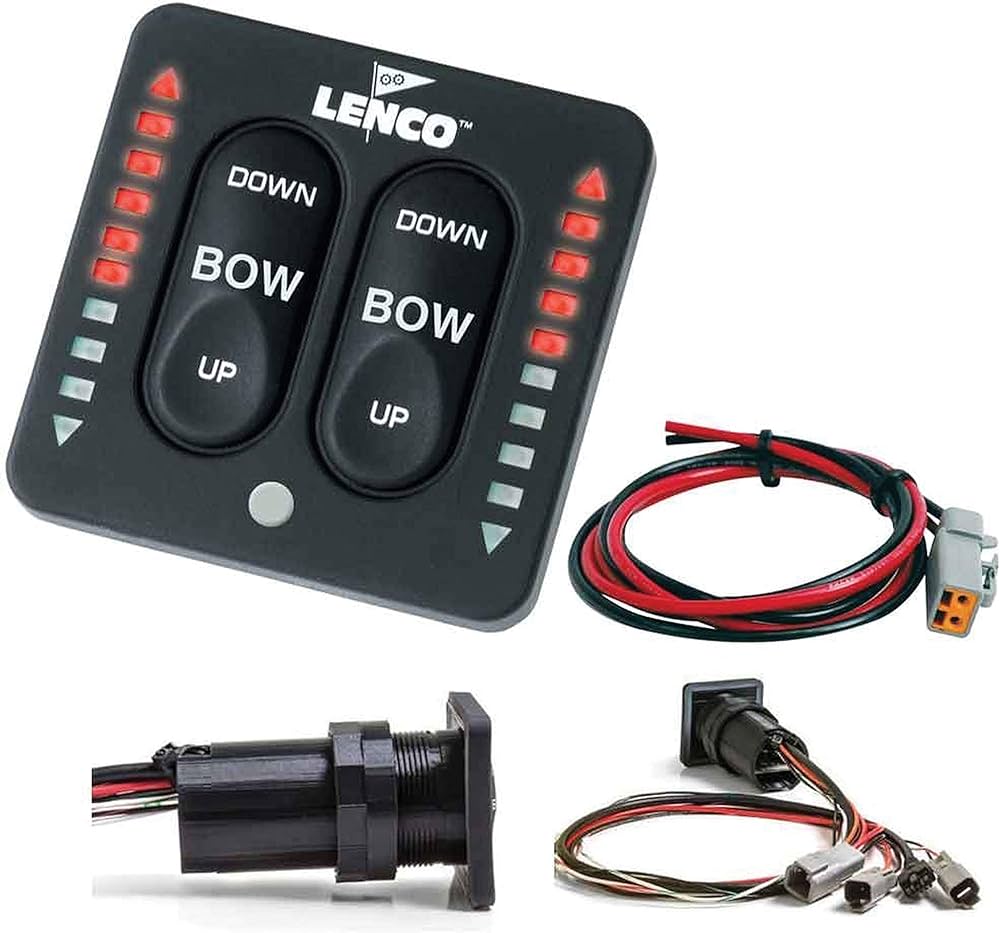

LENCO LED Indicator Integrated Tactile Trim Tab Switch Kit, Single Actuator, 12/24V – 15170-001 adds real-time trim-tab position indication to LENCO’s integrated tactile control platform. Two high-intensity LED displays show port and starboard tab position, while a photo eye adjusts display brightness and a backlit keypad improves nighttime operation. Control-box functionality is built into the keypad bezel for a compact plug-and-play installation.
Key Features
- Two high-intensity LED displays show trim-tab position
- Backlit keypad for night operation
- Ambient-light photo eye automatically adjusts display intensity
- Built-in automatic tab retractor and single-system self-check
- Integrated control electronics eliminate a separate control box
- Waterproof plug-and-play Deutsch connectors
Specifications
- Part Number: 15170-001
- System Type: Single-actuator LENCO 100 Series
- Voltage: 12V / 24V DC
- Control Type: LED indicator integrated tactile keypad
- Position Indication: Dual high-intensity LED displays
- Automatic Retractor: Yes
- Self-Check: Yes
- Rear Wiring Harness: 30 in (76.2 cm)
- Power Pigtail: 36 in (91.4 cm)
- Panel Cut-Out: 2-1/16 in (52.4 mm)
- Keypad Size: 2.75 x 2.75 in (69.9 x 69.9 mm)
- Rear Clearance Required: 4.08 in (103.6 mm)
- Compatibility Note: Pre-2017 keypads/control boxes are not cross-compatible with current integrated switch systems
What’s in the Box
- LED indicator integrated keypad/control assembly
- 30 in rear wiring harness
- 36 in power pigtail
- Deutsch-connected wiring
- Mounting hardware
