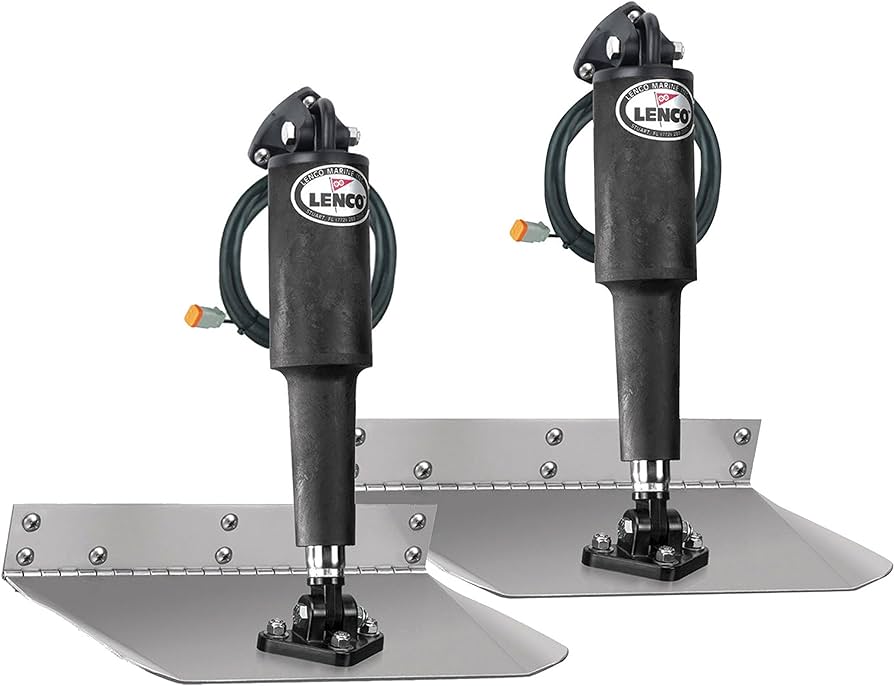

LENCO 9″ x 9″ Standard Mount Trim Tab Kit, 12V, No Switch – 15000-101

Description

LENCO 9" x 9" Standard Mount Trim Tab Kit, 12V, No Switch – 15000-101 is a compact 12V 100 Series electric trim tab system sized for smaller planing boats where 9 x 9 in tabs are appropriate. LENCO’s self-locking ball-screw actuators provide fast electric response without hydraulic pumps, hoses or fluid, while the 12-gauge 304 stainless blades add lift and allow the operator to correct list, improve hole shot and refine running attitude.

Key Features

• Pair of 9 x 9 in standard-mount trim tab planes for approximately 14–18 ft boats
• 12-gauge (2.7 mm) laser-cut 304 stainless steel blades
• Two sealed 101 electric actuators with 1.8 m leads and Deutsch connectors
• 20 ft (6.1 m) actuator extension harness for each actuator
• Self-locking ball-screw actuation resists drift
• Switch kit sold separately so control style can be selected to suit the helm

Specifications

• Part Number: 15000-101
• Series: 100 Series Standard Mount
• System Voltage: 12V DC
• Tab Size: 9 x 9 in (22.9 x 22.9 cm)
• Recommended Boat Length: 14–18 ft (4.3–5.5 m)
• Hinge Height: 2 in (5.1 cm)
• Minimum Transom Height: 14 in (35.6 cm)
• Blade Material: 12-gauge 304 stainless steel
• Blade Finish: Standard
• Actuators: 2 x 101 Standard, 2-1/4 in stroke
• Switch: Not included

What’s in the Box

• 2 x 9 x 9 in 12-gauge 304 stainless trim tab blades
• 2 x 15054-001 101 actuators with 1.8 m leads and Deutsch connectors
• 2 x 30133-103 6.1 m actuator extension harnesses
• 2 x 15085-001 upper mounting brackets with gland seals
• 2 x 50014-001 lower mounting brackets
• Owner/installation manual
• Stainless steel mounting hardware

Control note: This kit does not include a helm switch. Select a compatible LENCO 100 Series control based on the actuator configuration and desired features.
