LENCO LED Indicator Two-Piece Tactile Trim Tab Switch Kit, Single Actuator, 12/24V – 15270-001

Description

LENCO LED Indicator Two-Piece Tactile Trim Tab Switch Kit, Single Actuator, 12/24V – 15270-001 provides the LED position-indicator functionality of LENCO’s premium tactile controls while separating the control box from the keypad. This reduces the depth required directly behind the helm panel, making it useful for tight console installations where the all-in-one 15170-001 cannot be accommodated.

Key Features

• Two-piece architecture with shallow keypad and remotely mounted control box
• Dual high-intensity LED trim-tab position displays
• Backlit keypad and ambient-light photo eye
• Built-in retractor and single-system self-check
• Waterproof Deutsch connections for plug-and-play wiring
• Designed specifically for consoles with limited depth behind the switch panel

Specifications

• Part Number: 15270-001
• System Type: Single-actuator LENCO 100 Series
• Voltage: 12V / 24V DC
• Control Type: LED indicator two-piece tactile switch
• Control Box: Separate remotely mounted solid-state control box
• Position Indication: Dual high-intensity LED displays
• Automatic Retractor: Yes
• Self-Check: Yes
• Rear Wiring Harness: 30 in (76.2 cm) from switch bezel
• Power Pigtail: 36 in (91.4 cm)
• Compatibility Note: Pre-2017 keypads/control boxes are not cross-compatible with current switch systems

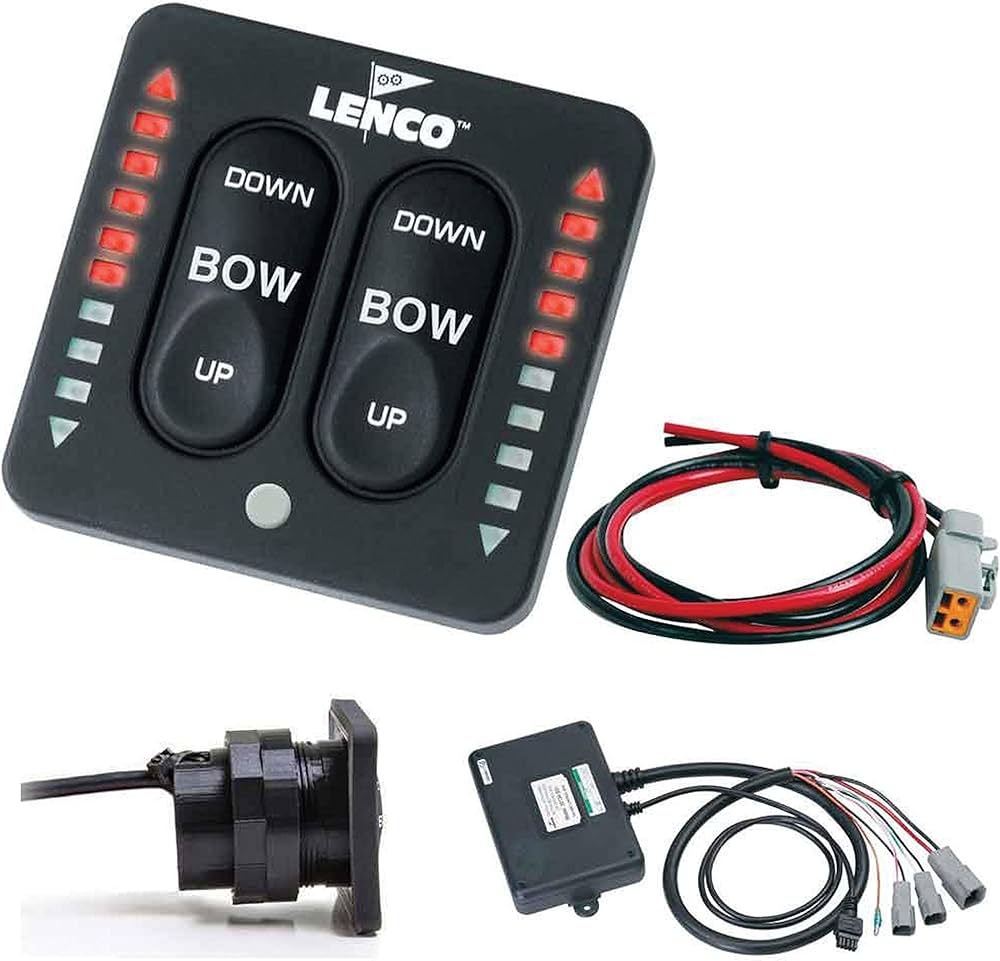

What’s in the Box

• Low-profile LED tactile keypad
• Separate solid-state control box
• 30 in keypad harness
• 36 in power pigtail
• Deutsch-connected wiring
• Mounting hardware
