JABSCO HotShot HD6 Washdown Pump Kit with 7.6 m Hose, 12V, 6 GPM, 70 PSI – P601J-219N-4A

Description

JABSCO HotShot HD6 Washdown Pump Kit with 7.6 m Hose, 12V, 6 GPM, 70 PSI – P601J-219N-4A

The JABSCO HotShot HD6 is a heavy-duty 12V diaphragm washdown pump delivering up to 6 GPM (22.7 L/min) with a 70 PSI (4.8 bar) pressure switch. It automatically starts when the trigger nozzle opens and stops when the outlet closes, providing strong deck-cleaning performance with fresh or salt water.

• High-output 6 GPM (22.7 L/min) flow for deck, anchor and equipment washdown
• 70 PSI (4.8 bar) pressure switch produces a concentrated cleaning stream
• Multi-chamber diaphragm design is self-priming and can tolerate dry running during normal use
• Sealed pressure switch, corrosion-resistant construction and vibration-damping mounting feet suit marine installations
• Automatic demand operation starts and stops the pump as the spray nozzle is opened and closed

Warning: Do not use for gasoline, petroleum products or other flammable liquids. Install with the correct fuse, wire size, inlet strainer and marine-grade plumbing, and relieve pressure before service.

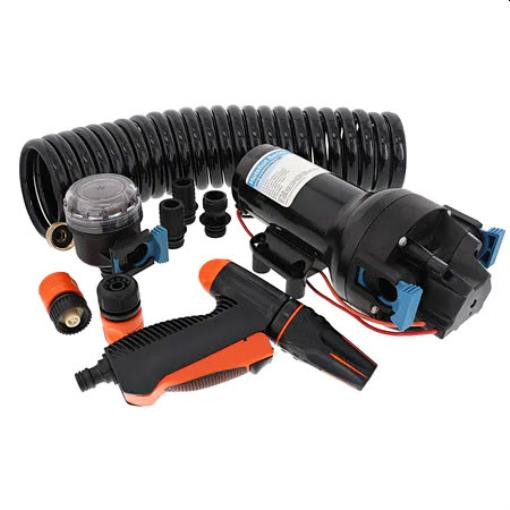

What’s in the Box

• 1 x JABSCO HotShot HD6 12V washdown pump
• 1 x 7.6 m (25 ft) washdown hose
• 1 x trigger spray nozzle
• Quick-connect fittings and inlet strainer supplied with the kit
• Installation instructions

Specifications

• Series: JABSCO HotShot HD6
• Application: Marine washdown service
• Voltage: 12V DC
• Maximum flow: 6 GPM (22.7 L/min)
• Pressure-switch setting: 70 PSI (4.8 bar)
• Pump type: Multi-chamber positive-displacement diaphragm pump
• Operation: Automatic demand
• Approximate pump dimensions: 25.9 L x 13.0 W x 11.9 H cm
• Manufacturer part number: P601J-219N-4A
