JABSCO HotShot HD5 Washdown Pump, 12V, 5 GPM, 70 PSI – P501J-119N-3A

Description

JABSCO HotShot HD5 Washdown Pump, 12V, 5 GPM, 70 PSI – P501J-119N-3A

The JABSCO HotShot HD5 is a heavy-duty 12V diaphragm washdown pump delivering up to 5 GPM (18.9 L/min) with a 70 PSI (4.8 bar) pressure switch. It automatically starts when the trigger nozzle opens and stops when the outlet closes, providing strong deck-cleaning performance with fresh or salt water.

• High-output 5 GPM (18.9 L/min) flow for deck, anchor and equipment washdown
• 70 PSI (4.8 bar) pressure switch produces a concentrated cleaning stream
• Multi-chamber diaphragm design is self-priming and can tolerate dry running during normal use
• Sealed pressure switch, corrosion-resistant construction and vibration-damping mounting feet suit marine installations
• Automatic demand operation starts and stops the pump as the spray nozzle is opened and closed

Warning: Do not use for gasoline, petroleum products or other flammable liquids. Install with the correct fuse, wire size, inlet strainer and marine-grade plumbing, and relieve pressure before service.

What’s in the Box

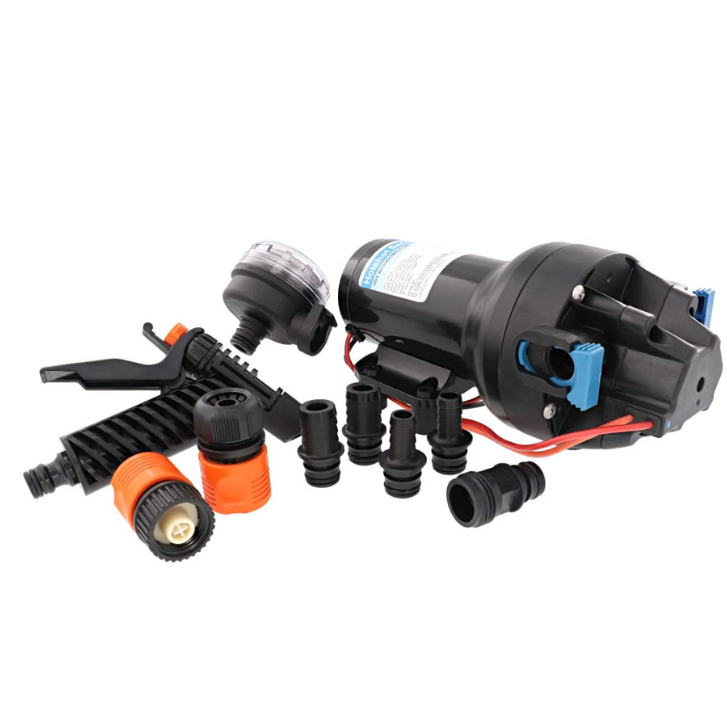

• 1 x JABSCO HotShot HD5 pump
• Quick-connect port fittings
• Installation instructions

Specifications

• Series: JABSCO HotShot HD5
• Application: Marine washdown service
• Voltage: 12V DC
• Maximum flow: 5 GPM (18.9 L/min)
• Pressure-switch setting: 70 PSI (4.8 bar)
• Pump type: Multi-chamber positive-displacement diaphragm pump
• Operation: Automatic demand
• Approximate pump dimensions: 24.4 L x 12.7 W x 11.9 H cm
• Manufacturer part number: P501J-119N-3A
