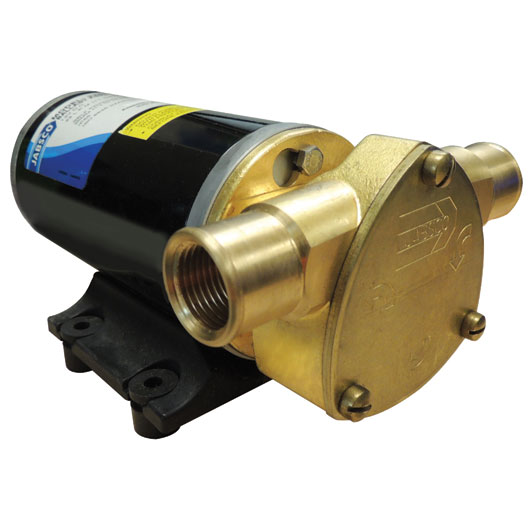

JABSCO Ballast King Reversible Bronze Pump with D5 Deutsch Connector, 12V, 15 GPM – 22610-9427

Description

JABSCO Ballast King Reversible Bronze Pump with D5 Deutsch Connector, 12V, 15 GPM – 22610-9427

The JABSCO 22610-9427 Ballast King rapidly fills and empties wakeboard or surf-boat ballast tanks. Its reversible bronze flexible-impeller pump moves up to 57 L/min and includes automatic run-dry protection to help protect the impeller after the tank empties.

• 15 GPM (57 L/min) flow adds approximately 56 kg of ballast water per minute
• Reversible operation fills and empties through the same pump
• Self-primes from dry up to approximately 1.2 m (4 ft)
• Bronze body, neoprene impeller and ignition-protected 12V motor
• D5 Deutsch connector; reversing control switch is not included

Warning: The pump does not automatically stop at a full tank. Monitor operation and use properly rated wiring, a 25A fuse, suitable directional switching and correct seacock/plumbing arrangements. Do not pump fuel.

What’s in the Box

• 1 x JABSCO 22610-9427 Ballast King pump

Specifications

• Voltage: 12V DC
• Maximum Flow: 15 GPM (57 L/min)
• Current Draw: Approximately 19A
• Recommended Fuse: 25A
• Ports: 1/2-inch internal pipe thread / 1-inch external hose barb
• Self-Priming Lift: Approximately 1.2 m (4 ft)
• Duty Cycle: 30 minutes maximum
• Electrical Connection: D5 Deutsch connector
• Approximate Pump Size: 20.3 x 12.1 x 9.2 cm
