JABSCO Amazon Thru-Deck Manual Bilge Pump, 1-Inch Ports – 29250-0000

Description

JABSCO Amazon Thru-Deck Manual Bilge Pump, 1-Inch Ports – 29250-0000

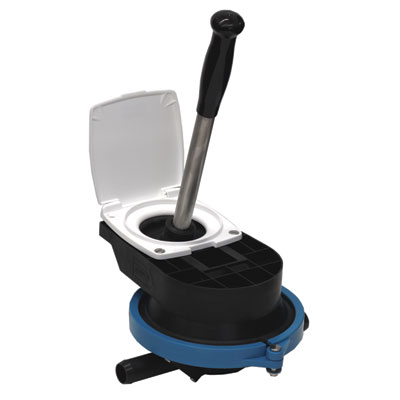

The JABSCO Amazon 29250-0000 installs below a deck or bulkhead while leaving only the operating socket and cover visible. It provides high manual pumping capacity for bilge or emergency service without occupying valuable working space above the mounting surface.

• Delivers up to approximately 50 L/min / 11 GPM
• Self-primes from up to approximately 4 m vertical lift
• 25 mm / 1-inch hose ports can be arranged in multiple positions
• Through-deck operating kit provides a clean, low-profile installation
• Quick-release pump body simplifies inspection and servicing

Warning: Install only in a correctly designed marine pumping system. Secure all hoses with appropriate clamps, keep the pickup clear and test the system regularly. This component does not replace required high-water alarms or backup pumping arrangements.

What’s in the Box

• 1 x JABSCO Amazon thru-deck pump

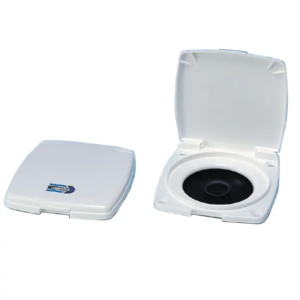

• 1 x Through-deck mounting kit and cover
• 1 x Stainless-steel operating handle
• Mounting hardware and instructions

Specifications

• Part Number: 29250-0000
• Pump Type: Manual single-diaphragm thru-deck pump
• Maximum Flow: Approximately 50 L/min / 11 GPM
• Hose Connections: 25 mm / 1 inch
• Maximum Self-Priming Lift: Approximately 4 m
• Approximate Pump Size: 250 x 210 x 120 mm
