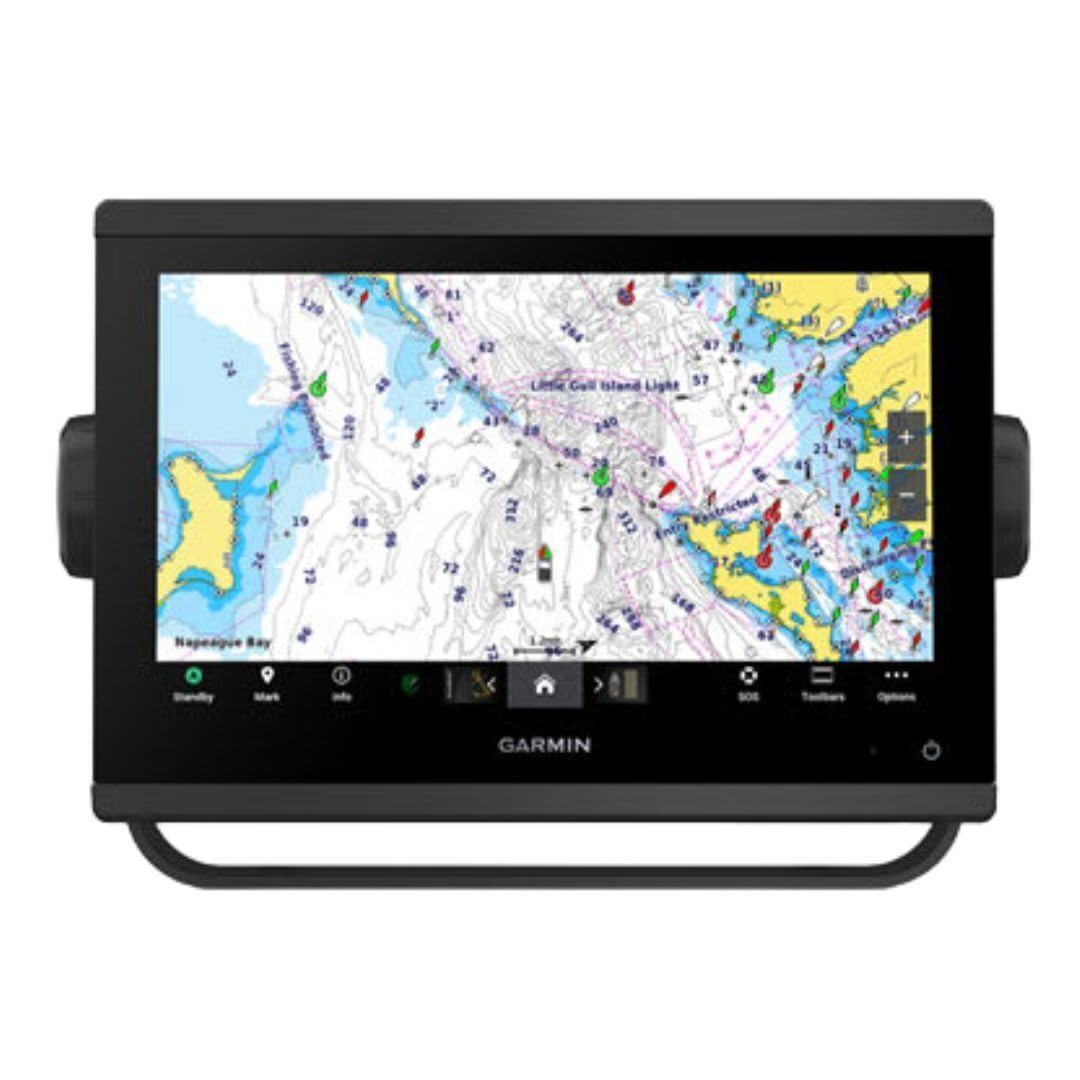

GARMIN GPSMAP 943xsv 9″ Chartplotter/Sonar with Garmin Navionics+ – 010-02366-61

Description

GARMIN GPSMAP 943xsv 9″ Chartplotter/Sonar with Garmin Navionics+ – 010-02366-61

The Garmin GPSMAP 943xsv is a powerful 9-inch multifunction chartplotter designed for cruising, fishing and fully integrated marine electronics systems. Its high-resolution IPS touchscreen provides excellent readability in bright sunlight and clear viewing from wide angles, while its slim, edge-to-edge design fits neatly into modern and retrofit helm installations.

• Bright 9-inch WXGA IPS touchscreen with 1280 x 720 resolution
• Preloaded Garmin Navionics+ offshore, coastal and inland mapping for the United States and coastal chart coverage for Canada
• Built-in Ultra High-Definition SideVü, ClearVü and traditional CHIRP sonar capabilities
• Supports compatible 1 kW CHIRP transducers, Panoptix live sonar and LiveScope systems
• Connects with compatible radar, autopilots, AIS, VHF radios, Fusion audio systems, cameras, engines and digital switching equipment

The GPSMAP 943xsv includes a fast 10 Hz multi-GNSS receiver supporting GPS, GLONASS and Galileo satellite systems for responsive vessel-position, speed and course-over-ground information. Compatible Garmin chartplotters can share mapping, user data, radar and supported camera video through the Garmin Marine Network.

Built-in Wi-Fi allows the chartplotter to connect with the Garmin ActiveCaptain app for software updates, chart management, smart notifications and access to Garmin Quickdraw Community content. NMEA 2000, NMEA 0183, J1939 and Garmin Marine Network connectivity provide extensive options for building or expanding an integrated helm system.

Please note: This package does not include a sonar transducer. Sonar performance and available frequencies depend on the compatible transducer selected.

What’s in the Box

• GPSMAP 943xsv chartplotter
• Preinstalled microSD card
• Power cable
• NMEA 2000 T-connector
• 2 m NMEA 2000 drop cable
• Bail-mount kit with knobs
• Flush-mount kit with gasket
• Protective cover
• Trim-piece snap covers
• 8-pin transducer-to-12-pin sounder adapter cable
• Documentation

Specifications

• Display size: 22.9 cm diagonal
• Display dimensions: 19.9 x 11.2 cm
• Display resolution: 1280 x 720 pixels
• Display type: WXGA IPS touchscreen
• Product dimensions: 23.3 x 16.2 x 7.6 cm
• Dimensions with cover and bail mount: 25.6 x 17.8 x 10.5 cm
• Weight: 1.6 kg
• Input voltage: 10–32 V DC
• Maximum power usage: 40.2 W
• Water rating: IPX7
• Mounting options: Bail, flush or custom flat mounting
• Sonar: Traditional CHIRP, ClearVü and SideVü
• Traditional sonar output: Up to 1 kW with compatible transducer
• Transducer connection: One 12-pin port
• Garmin Marine Network ports: One
• NMEA 2000 ports: One
• NMEA 0183: One differential input and one differential output
• Video input: One BNC composite input
• Engine connectivity: J1939 compatible
• Wireless connectivity: Wi-Fi, Bluetooth and ANT
• Memory-card slots: Two microSD slots; up to 32 GB per card
• Waypoints: 5,000
• Routes: 100
• Track capacity: 50,000 active points and 50 saved tracks
• Transducer included: No
