GARMIN GPS 24xd NMEA 2000 Position Receiver – 010-02316-10

Description

The GARMIN GPS 24xd (White) is an external NMEA 2000 GNSS position receiver with integrated heading sensor for marine navigation systems. Multi-band, multi-constellation satellite reception improves position performance, while the magnetic heading output helps compatible chartplotters stabilize chart orientation and radar overlays at low speed.

Main Features

• Multi-band GNSS reception for improved marine positioning
• GPS and multiple global satellite constellations
• 10 Hz position updates for responsive navigation
• Integrated magnetic heading sensor
• NMEA 2000 interface for simple system integration

Positioning

An external roof- or pole-mounted receiver can improve satellite visibility compared with a display mounted under a hardtop or inside a pilothouse. Multi-band reception is designed to reduce certain errors caused by reflected satellite signals.

Heading data

The integrated magnetic heading sensor provides vessel heading even when the boat is moving slowly or stationary, where course-over-ground is not a useful heading substitute.

System integration

NMEA 2000 allows the receiver to provide position and heading data to compatible chartplotters, autopilot components and other marine electronics on the network.

Installation

Mount in a location with a broad sky view and away from strong magnetic fields. Heading performance depends on correct placement and calibration.

What’s in the Box

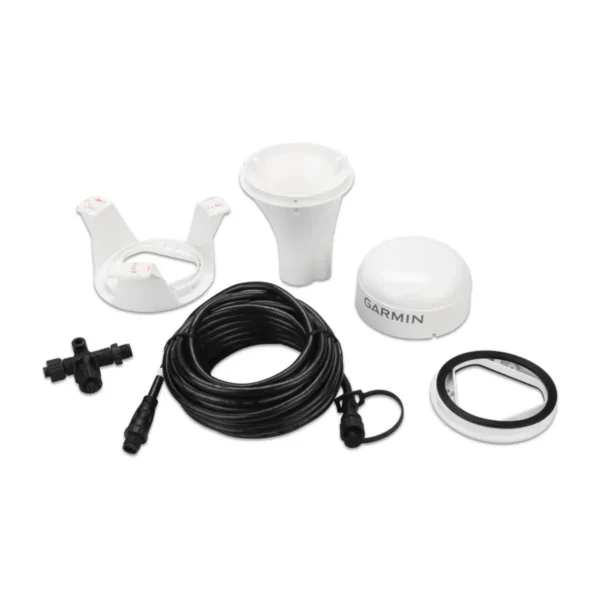

GPS 24xd sensor, NMEA 2000 cable/T-connector or model-specific installation accessories, mounting hardware and documentation.

Specifications

• Product type: NMEA 2000 GNSS receiver and heading sensor
• Update rate: 10 Hz
• GNSS: Multi-band/multi-constellation
• Heading: Integrated magnetic heading sensor
• Network: NMEA 2000
• Color: White
