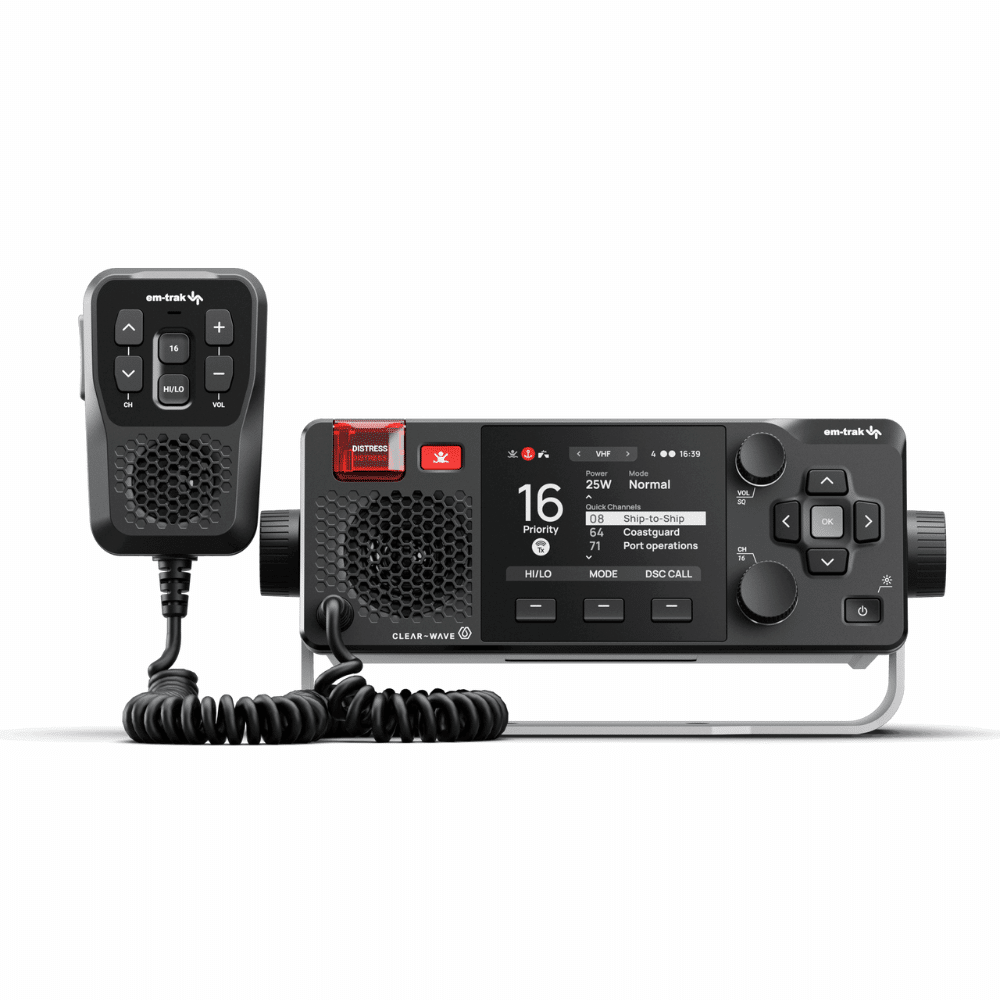

EM-TRAK Nexus Base Station VHF / DSC / AIS – X100

Description

EM-TRAK Nexus Base Station VHF / DSC / AIS – X100

The EM-TRAK Nexus X100 is a fully integrated marine communication and safety base station combining a Class D VHF/DSC radio with high-power AIS Class B transmission and reception. Designed as a central communications hub, the X100 delivers advanced situational awareness, vessel-to-vessel communication, and wireless mobile device integration for modern recreational and professional vessels.

• Integrated Class D VHF/DSC radio with Clear-Wave digital audio processing
• High-power AIS Class B SOTDMA with transmit and receive capability
• CONNECT-X wireless support for smartphones and smartwatches as command microphones
• Single shared VHF antenna connection with integrated zero-loss AIS/VHF splitter
• Built-in GPS, Wi-Fi, Bluetooth, NMEA 2000, and NMEA 0183 connectivity

The X100 is engineered as a single, vessel-wide communications platform. The integrated AIS continuously transmits and receives vessel data while intelligently managing transmission timing to avoid interference with VHF voice traffic. Silent mode allows AIS transmission to be temporarily disabled when required, while CPA and navigation alerts enhance collision avoidance and safety.

Through the free CONNECT-X app, up to ten mobile devices can be connected wirelessly, transforming phones and watches into full-function VHF/DSC command mics. Crew can communicate via private intercom, initiate DSC calls, monitor AIS targets, receive MOB alerts, and manage radio functions from anywhere onboard, eliminating dead spots when integrated with the vessel’s Wi-Fi network.

Specifications

• Radio Type: Integrated VHF / DSC / AIS base station
• AIS Class: Class B SOTDMA
• VHF Output Power: 25 W (Hi) / 1 W (Lo)
• AIS Output Power: 5 W
• Frequency Range (TX): 156.025–161.425 MHz
• Frequency Range (RX): 156.300–161.925 MHz
• DSC Frequency: 156.525 MHz
• AIS Channels: 161.975 MHz, 162.025 MHz
• Usable Channels: International, USA, Canada, ATIS
• Power Supply: 9.6–31.2 V DC
• Operating Temperature: -25°C to +68°C
• Antenna Impedance: 50 ohms
• Internal Speaker Output: 5 W (81 dB @ 1 m)
• External Speaker / Loudhailer Output: 15 W
• Connectivity: NMEA 2000, NMEA 0183, Wi-Fi (802.11 b/g/n), Bluetooth 4.2
• GPS: Integrated (external antenna optional)
• Ingress Protection: IP66
• Mounting Options: Flush, desktop, or overhead mounting
• Dimensions: 249 mm (W) × 84 mm (H) × 162 mm (D)
• Weight: 700–800 g
• Certifications: IEC 62287-2, EN 301025, IEC 62238, IEC 60945
