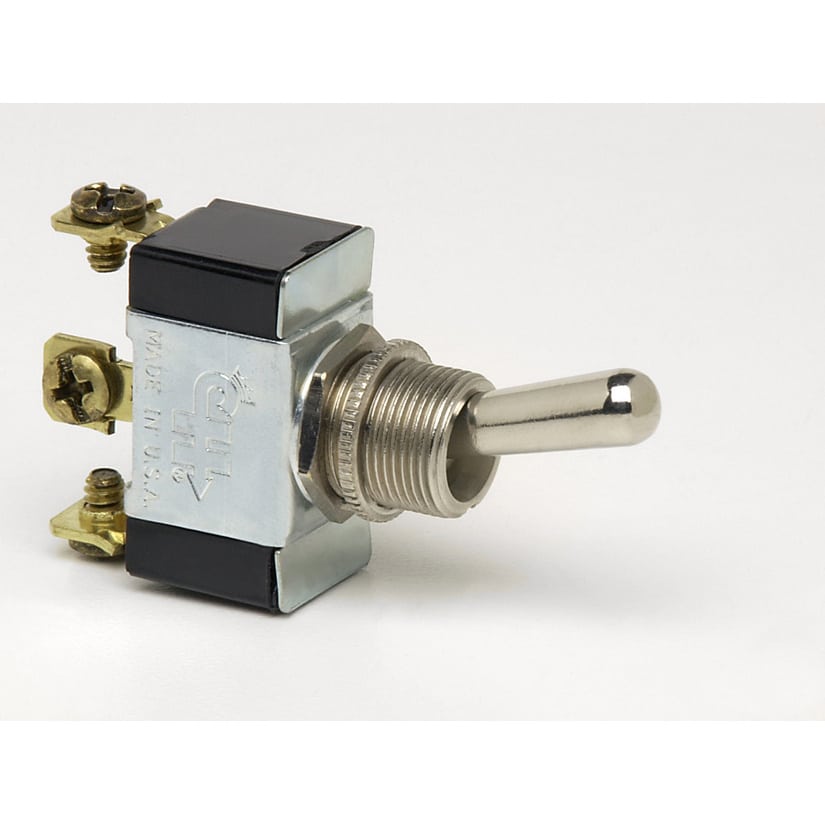

COLE HERSEE 25A Momentary On – Off – Momentary On Standard Heavy Duty Toggle Switch – 55021. Cole Hersee/Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.
- Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole
- Part Number 5520: Black Finished Face Nut
- Voltage Ratings: 10A at 36V DC
- 15A at 24V DC
- 25A at 12V DC
|Property (Mouseover for details)||Value|
|Current Rating (Continuous) in Amps||10|
|Voltage Rating (Max)||36|
|Positions||Momentary On – Off – Momentary On|
|Input Terminals||3 Screw|
|Housing||Black Plastic Plated Steel Cap|
|Actuator Details||Nickel-Plated Brass – 17.4625|
|Mounting Method||Nickel Plated Brass Face Nut|
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
