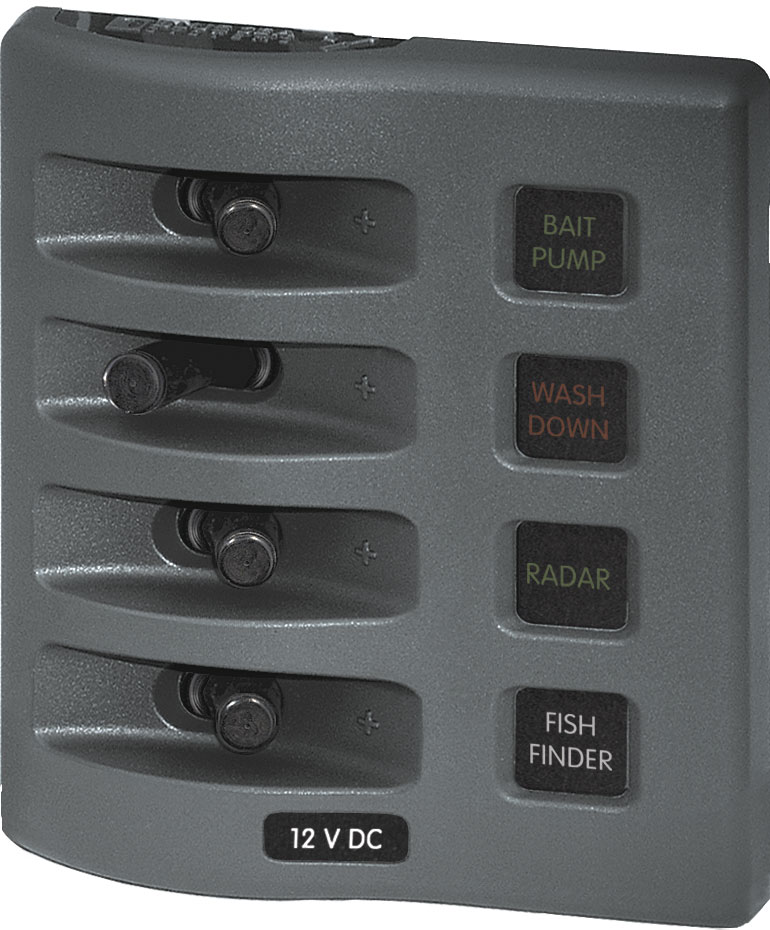

Blue Sea Systems WeatherDeck® 12V DC Waterproof Fuse Panel – Gray 4 Positions – 4304
The Blue Sea Systems WeatherDeck® 12V DC Waterproof Fuse Panel – Gray 4 Positions is designed for marine and mobile electrical circuit protection.
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 – protected against immersion up to 1 meter for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting circuit for remote switching and dimming
- Available in 2, 4, 6, and 8 circuit models
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Weatherproof: Waterproof
- Positions: 4
- Nominal Voltage: 12V DC
- Circuit Protection: Fuse
- Maximum Amperage: 15A @ 12V DC (per circuit)
- Panel Cumulative Rating: 60A
- Backlit Label: Bicolored LED
- Backlighting Amperage: 10mA /Illuminated Circuit
- Backlighting Voltage: 12V DC
- Material: Reinforced Polycarbonate
- Height: 4.30 in (109.22 mm)
- Width: 3.88 in (98.55 mm)
- Depth: 2.50 in (63.5 mm)
- Weight: 0.90 lb (0.41 kg)
- Product Dimensions: 9.86 cm L × 10.92 cm W × 6.35 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 4304
