Description

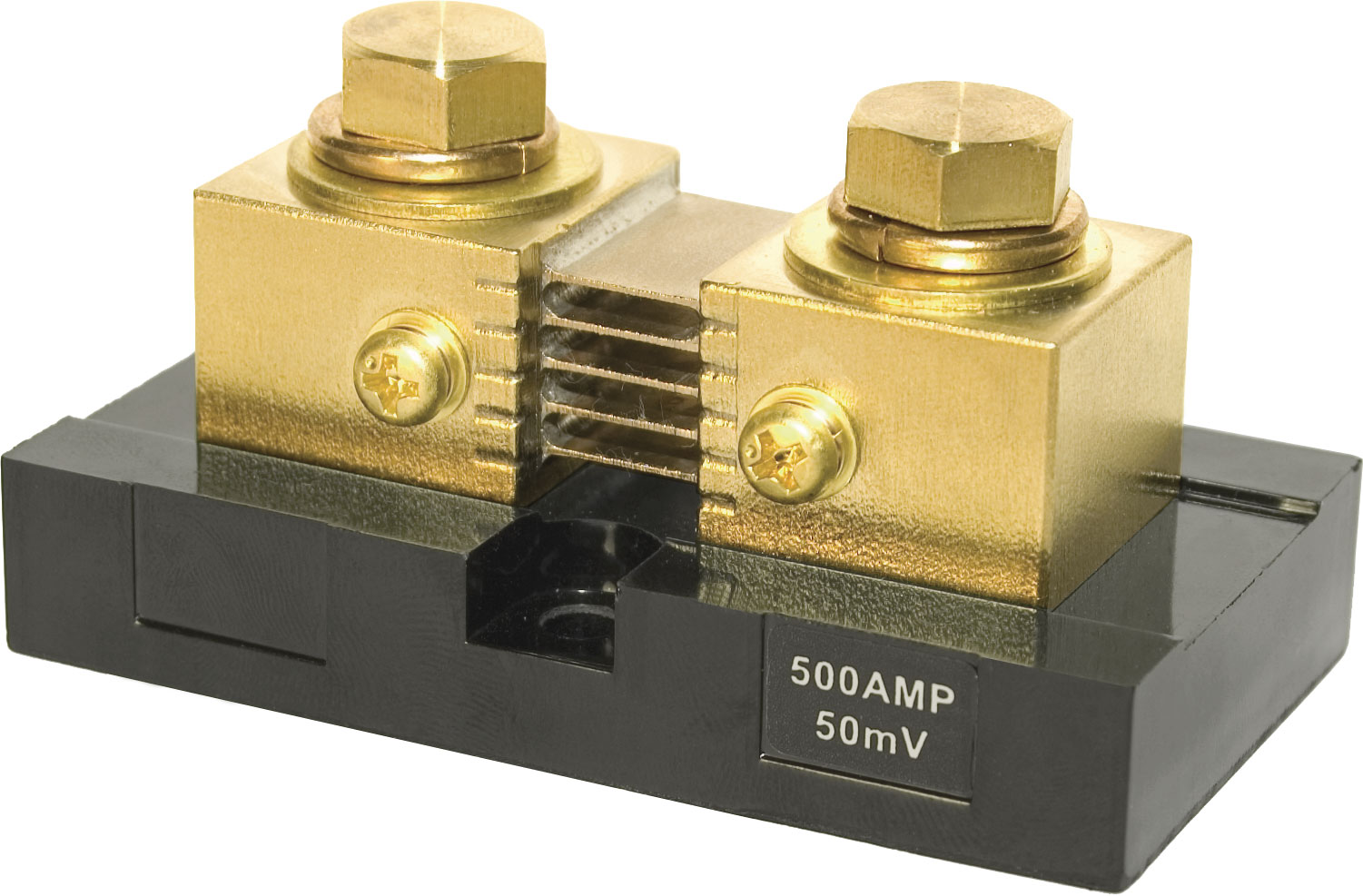

BLUE SEA SYSTEMS Shunt 500 Amp – 8255.
- For use with DC Ammeters
- For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
Specifications | |
---|---|
Continuous Duty | 66% of Rated Current |
Full Scale | 50 Milivolts |
Intermittent Duty | 300% @ 3 Seconds 100% @ 5 Minutes |
Ratio | 500A DC/50mV DC |
Recommended Torque | 7 in-lb (0.79 N·m) Brass Fittings 190 in-lb (21.47 N·m) M10 Bolts |
Shunt Type | Resistive, Manganin Metal Element |
Weight | 0.71lb (0.32 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
