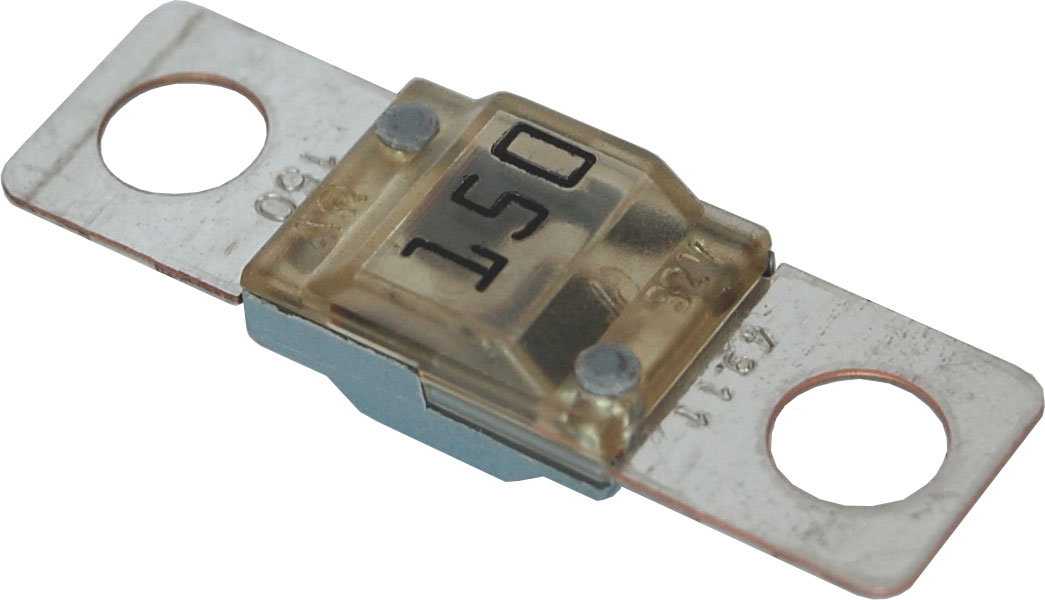

Blue Sea Systems MIDI/AMI Fuse – 150A – 5258

Description

Blue Sea Systems MIDI/AMI Fuse – 150A – 5258

The Blue Sea Systems MIDI/AMI Fuse – 150A is designed for marine and mobile electrical circuit protection.

• Fast-acting type fuses ideal for electronic devices
• Standard circuit protection device for automobiles and trucks
• Tin-plated connector blades for corrosion resistance
• Visible indication of blown condition
• Sold in packages of 2

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 150A
• Ignition Protected: Yes
• Maximum Voltage: 32V DC
• Interrupt Capacity: 5,000A @ 16V DC / 2,000A @ 32V DC
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 125°C
• Blade Material: tin-plated Copper CDA 110/UNS11000
• Maximum Torque: 40 in-lb (4.52 N·m)
• Weight: 0.05 lb (0.02 kg)
• Fuse Body Size: MIDI/AMI fuse format; approx. 1.66 in L × 0.47 in W × 0.33 in H (42.2 mm × 12.0 mm × 8.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5258
